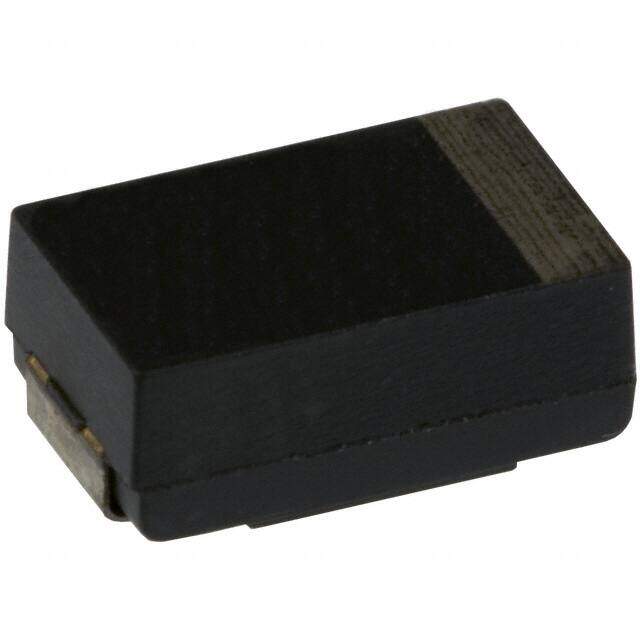

EEF-SX0D271R
RoHS
RoHS compliant
RoHS compliantPackage 2917 (7343 Metric)
Category Capacitors / Aluminum - Polymer Capacitors
Description
2917 (7343Metric) SP-Cap SX 2V 270muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.276
≥1 USD $1.276
≥10 USD $0.9548
≥100 USD $0.8712
≥500 USD $0.713768
≥1000 USD $0.569659
≥3000 USD $0.502647
Inventory: 1260
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Terminal Shape WRAPAROUND
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2011
Series SP-Cap SX
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Polymer
Resistance 9mOhm
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 270μF
Voltage - Rated DC 2V
Packing Method BULK
Depth 4.3mm
Case Code (Metric) 7343
Case Code (Imperial) 2917
ESR (Equivalent Series Resistance) 9mOhm
Polarity POLARIZED
Rated (DC) Voltage (URdc) 2V
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 32.4μA
Ripple Current 3A
Life (Hours) 1000 hours
Dissipation Factor 0.06 %
Dimensions
Height 2mm
Height Seated (Max) 0.079 2.00mm
Length 7.3mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
