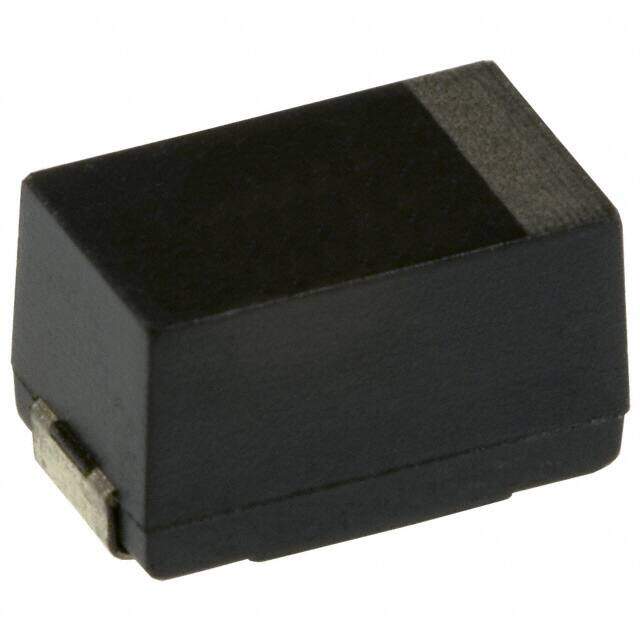

EEF-SE0D391R
RoHS
/
Package 2917 (7343 Metric)
Category Capacitors / Aluminum - Polymer Capacitors
Description
2917 (7343Metric) SP-Cap SE 2V 390muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Inventory: 9633
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Terminal Shape WRAPAROUND
Surface Mount Land Size 0.287Lx0.169W 7.30mmx4.30mm
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2011
Series SP-Cap SE
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Polymer
Resistance 5mOhm
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 390μF
Voltage - Rated DC 2V
Packing Method BULK
Depth 4.3mm
Case Code (Metric) 7343
Case Code (Imperial) 2917
ESR (Equivalent Series Resistance) 5mOhm
Polarity POLARIZED
Rated (DC) Voltage (URdc) 2V
Lifetime @ Temp 1000 Hrs @ 105°C
Leakage Current 0.0468mA
Ripple Current 4A
Life (Hours) 1000 hours
Tan Delta 0.1
Dissipation Factor 0.1 %
Dimensions
Height 4.2mm
Height Seated (Max) 0.165 4.20mm
Length 7.3mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
