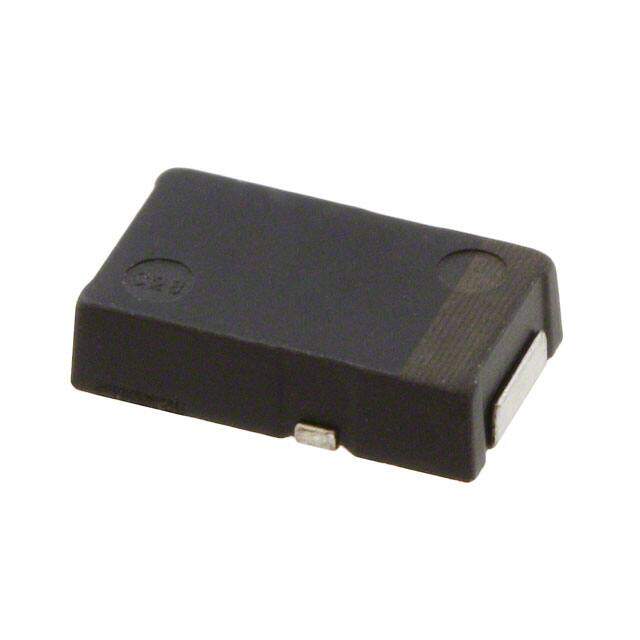

EEF-LX0D471R4
RoHS
RoHS compliant
RoHS compliantPackage 2917 (7343 Metric)
Category Capacitors / Aluminum - Polymer Capacitors
Description
2917 (7343Metric) SP-Cap LX 2V 470muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Buying Options
Total Price: USD $1.52
Unit Price: USD $1.5224
≥1 USD $1.5224
≥10 USD $1.14488
≥100 USD $1.044384
≥500 USD $0.855624
≥1000 USD $0.682915
≥3000 USD $0.602571
Inventory: 1129
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric Material Aluminium
Surface Mount Land Size 0.287Lx0.169W 7.30mmx4.30mm
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2010
Series SP-Cap LX
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Polymer
Applications General Purpose
Capacitance 470μF
Voltage - Rated DC 2V
Packing Method BULK
Depth 4.3mm
Case Code (Metric) 7343
Case Code (Imperial) 2917
ESR (Equivalent Series Resistance) 4.5mOhm
Polarity POLARIZED
Lead Diameter 2.4 mm
Voltage 2V
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 94μA
Ripple Current 3.8A
Life (Hours) 1000 hours
Tan Delta 0.06
Ripple Current @ High Frequency 8.5A @ 100kHz
Ripple Current (AC) 3.8A
Dimensions
Height 1.9mm
Height Seated (Max) 0.083 2.10mm
Length 7.3mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
