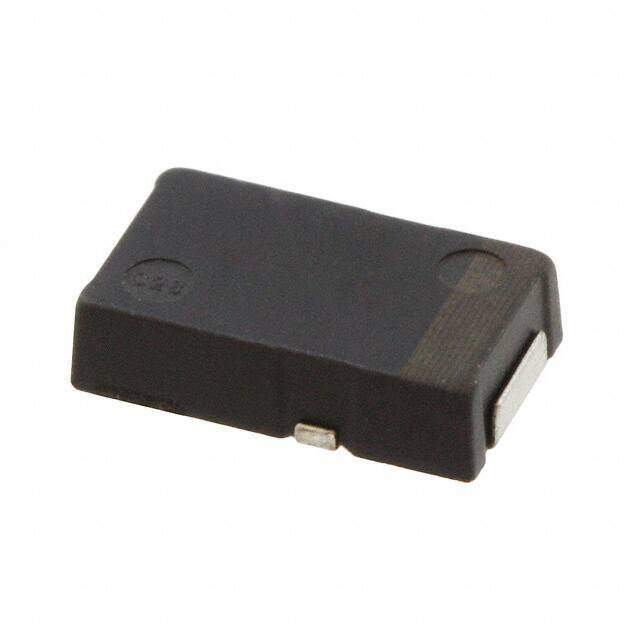

EEF-HX0D471R4
RoHS
RoHS compliant
RoHS compliantPackage 2917 (7343 Metric)
Category Capacitors / Aluminum - Polymer Capacitors
Description
2917 (7343Metric) SP-Cap HX 2V 470muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Buying Options
Total Price: USD $1.09
Unit Price: USD $1.094566
≥1 USD $1.094566
≥10 USD $1.032616
≥100 USD $0.97416
≥500 USD $0.91902
≥1000 USD $0.866997
Inventory: 5935
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.2926mm
Length 7.2898mm
Height Seated (Max) 0.079 2.00mm
Technical
Ripple Current @ High Frequency 8.5A @ 100kHz
Life (Hours) 1000 hours
Ripple Current 8.5A
Lifetime @ Temp 1000 Hrs @ 125°C
Polarity Polar
ESR (Equivalent Series Resistance) 4.5mOhm
Capacitance 470μF
Voltage - Rated 2V
Applications General Purpose
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Type Polymer
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Tolerance ±20%
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Series SP-Cap HX
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Package / Case 2917 (7343 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks

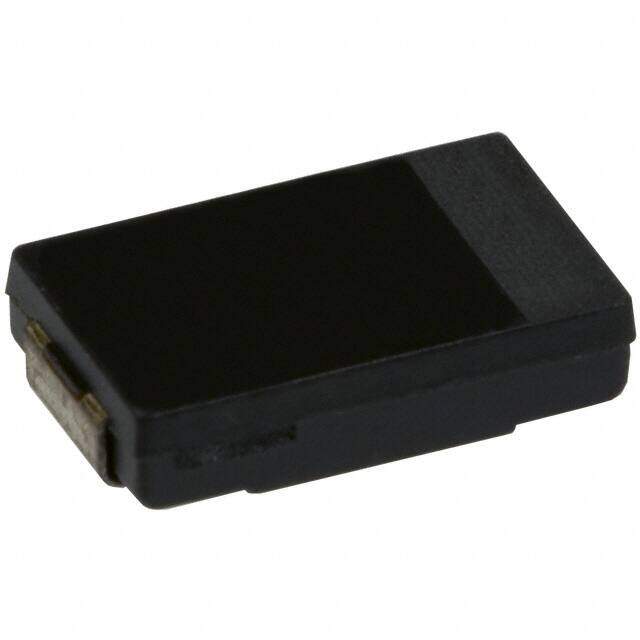

Alternative Model
