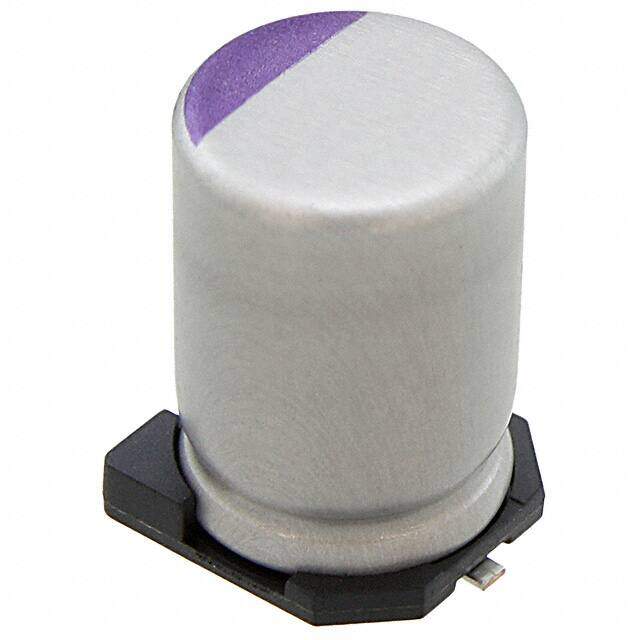

50SVPF39M
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum - Polymer Capacitors
Description
Radial Can - SMD OS-CON? SVPF 50V 39muF ±20% 0.315Dia 8.00mm
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.5752
≥1 USD $1.5752
≥10 USD $1.20824
≥100 USD $1.10968
≥500 USD $0.920128
Inventory: 1153
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape FLAT
Number of Pins 12
Surface Mount Land Size 0.327Lx0.327W 8.30mmx8.30mm
Technical
Operating Temperature -55°C~105°C
Packaging Cut Tape (CT)
Published 2013
Series OS-CON?, SVPF
Size / Dimension 0.315Dia 8.00mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Polymer
Applications General Purpose
Capacitance 39μF
Voltage - Rated DC 50V
ESR (Equivalent Series Resistance) 25mOhm
Polarity Polar
Size Code 3333
Voltage 50V
Lifetime @ Temp 5000 Hrs @ 105°C
Leakage Current 390μA
Ripple Current 3.8A
Life (Hours) 5000 hours
Ripple Current @ Low Frequency 190mA @ 120Hz
Ripple Current @ High Frequency 3.8A @ 100kHz
Dissipation Factor 12 %
Ripple Current (AC) 3.8A
Dimensions
Diameter 8mm
Height 11.9mm
Height Seated (Max) 0.472 12.00mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
