4SEP680M+T
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum - Polymer Capacitors
Description

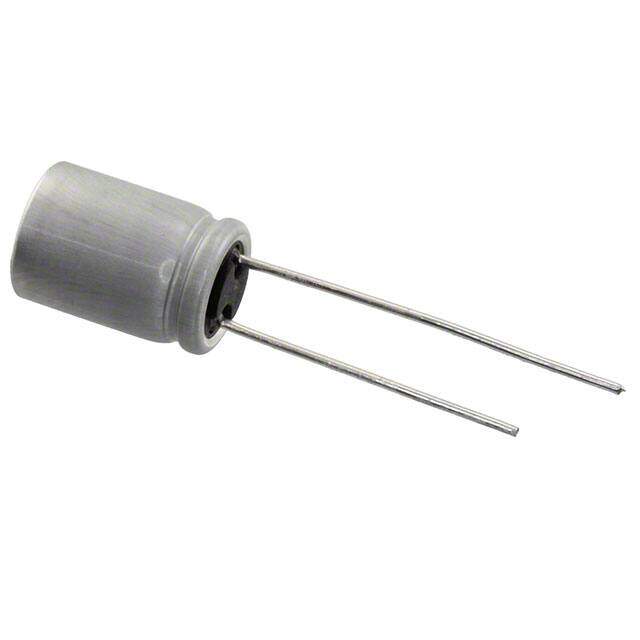

Radial Can OS-CON? SEP 4V 680muF ±20% 0.394Dia 10.00mm
PDF
/
Buying Options
Total Price: USD $1.27
Unit Price: USD $1.2672
≥1 USD $1.2672
≥10 USD $0.94688
≥100 USD $0.86416
≥500 USD $0.70796
Inventory: 673
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Technical
Operating Temperature -55°C~105°C
Packaging Cut Tape (CT)
Published 2013
Series OS-CON?, SEP
Size / Dimension 0.394Dia 10.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Type Polymer
Applications General Purpose
Capacitance 680μF
Voltage - Rated DC 4V
Lead Pitch 5mm
ESR (Equivalent Series Resistance) 25mOhm
Polarity Polar
Lead Spacing 0.197 5.00mm
Lead Diameter 500 μm
Voltage 4V
Lifetime @ Temp 3000 Hrs @ 105°C
Leakage Current 544μA
Ripple Current 3.7A
Life (Hours) 3000 hours
Tan Delta 0.12
Ripple Current @ Low Frequency 185mA @ 120Hz
Ripple Current @ High Frequency 3.7A @ 100kHz
Dissipation Factor 12 %
Dimensions
Diameter 10mm
Height Seated (Max) 0.315 8.00mm
Length 8mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
