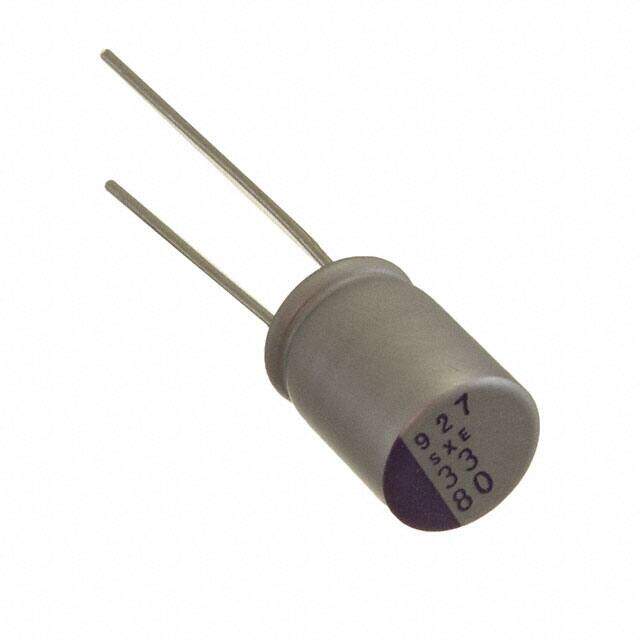

2SEPC820MD+TSS
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum - Polymer Capacitors
Description
Radial Can OS-CON? SEPC 2.5V 820muF ±20% 0.315Dia 8.00mm
PDF
/
Inventory: 7598
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Number of Pins 7
Dielectric Material ALUMINUM
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Box (TB)
Series OS-CON?, SEPC
Size / Dimension 0.315Dia 8.00mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination Radial
Type Polymer
Applications General Purpose
Capacitance 820μF
Voltage - Rated DC 2.5V
Packing Method Box
Lead Pitch 3.5mm
ESR (Equivalent Series Resistance) 8mOhm
Polarity POLARIZED
Lead Spacing 0.138 3.50mm
Lead Diameter 600 μm
Voltage 2.5V
Lifetime @ Temp 5000 Hrs @ 105°C
Leakage Current 500μA
Ripple Current 5.3A
Life (Hours) 5000 hours
Ripple Current @ Low Frequency 265mA @ 120Hz
Ripple Current @ High Frequency 5.3A @ 100kHz
Dissipation Factor 10 %
Dimensions
Diameter 8mm
Height Seated (Max) 0.276 7.00mm
Compliance
RoHS Status ROHS3 Compliant
