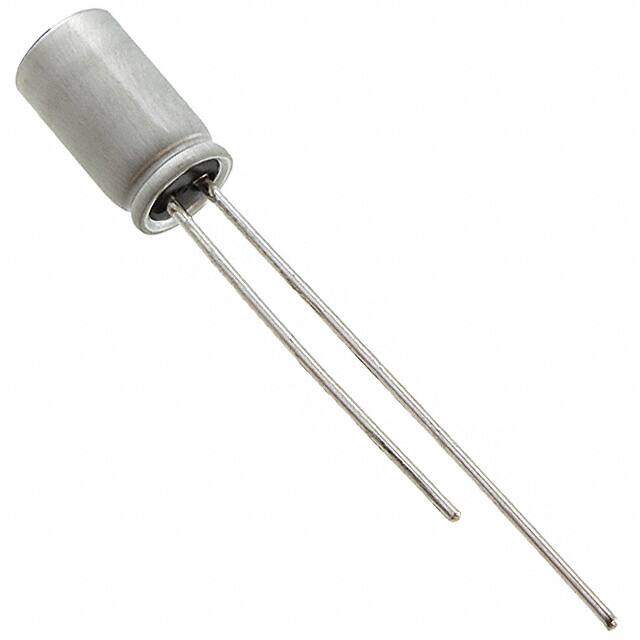

2SEPC560MX image
Favorite
2SEPC560MX image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Can
Category Capacitors / Aluminum - Polymer Capacitors
Description Radial Can OS-CON? SEPC 2.5V 560muF ±20% 0.315Dia 8.00mm
PDF
/
Buying Options
Total Price: USD $1
Unit Price: USD $1.0032
≥1 USD $1.0032
≥10 USD $0.74976
≥100 USD $0.560252
≥500 USD $0.394557
≥1000 USD $0.355098
≥3000 USD $0.34195
Inventory: 98
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Height Seated (Max) 0.354 9.00mm
Height 9mm
Diameter 8mm

Technical

Dissipation Factor 10 %
Ripple Current @ High Frequency 4.7A @ 100kHz
Ripple Current @ Low Frequency 235mA @ 120Hz
Tan Delta 0.1
Life (Hours) 5000 hours
Ripple Current 4.7A
Leakage Current 280μA
Lifetime @ Temp 5000 Hrs @ 105°C
Voltage 2.5V
Lead Diameter 600 μm
Lead Spacing 0.138 3.50mm
Polarity Polar
ESR (Equivalent Series Resistance) 8mOhm
Lead Pitch 3.5mm
Voltage - Rated DC 2.5V
Capacitance 560μF
Applications General Purpose
Type Polymer
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Tolerance ±20%
Size / Dimension 0.315Dia 8.00mm
Series OS-CON?, SEPC
Published 2007
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Number of Pins 9
Terminal Shape WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 10 Weeks
