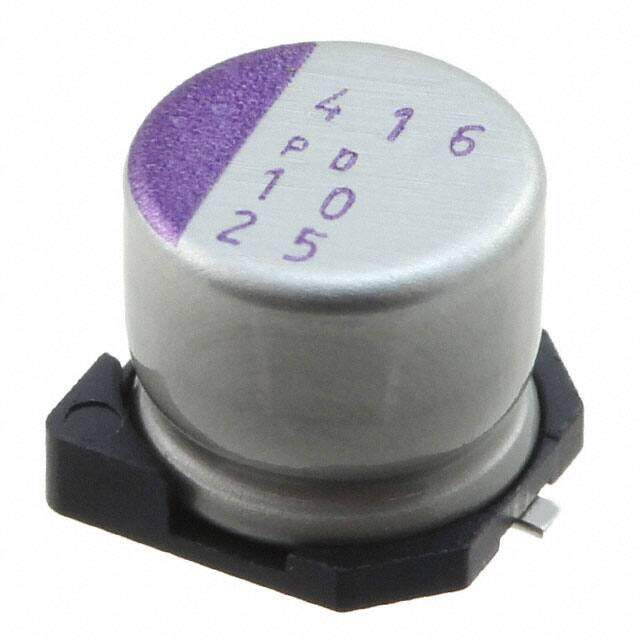

25SVPD10M
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum - Polymer Capacitors
Description
Radial Can - SMD OS-CON? SVPD 25V 10muF ±20% 0.248Dia 6.30mm
PDF
/
Buying Options
Total Price: USD $1.17
Unit Price: USD $1.1704
≥1 USD $1.1704
≥10 USD $0.87648
≥100 USD $0.799392
≥500 USD $0.654896
≥1000 USD $0.522667
Inventory: 1107
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape FLAT
Number of Pins 6
Dielectric Material Aluminium
Surface Mount Land Size 0.260Lx0.260W 6.60mmx6.60mm
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2016
Series OS-CON?, SVPD
Size / Dimension 0.248Dia 6.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Polymer
Applications General Purpose
Capacitance 10μF
Voltage - Rated DC 25V
Packing Method TR
Lead Pitch 2.1mm
ESR (Equivalent Series Resistance) 65mOhm
Polarity Polar
Voltage 25V
Lifetime @ Temp 2000 Hrs @ 125°C
Leakage Current 50μA
Ripple Current 1.5A
Life (Hours) 2000 hours
Tan Delta 0.1
Ripple Current @ Low Frequency 23.7mA @ 120Hz
Ripple Current @ High Frequency 474mA @ 100kHz
Dissipation Factor 10 %
Dimensions
Diameter 6.3mm
Height 6.6mm
Height Seated (Max) 0.236 6.00mm
Length 7.3mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
