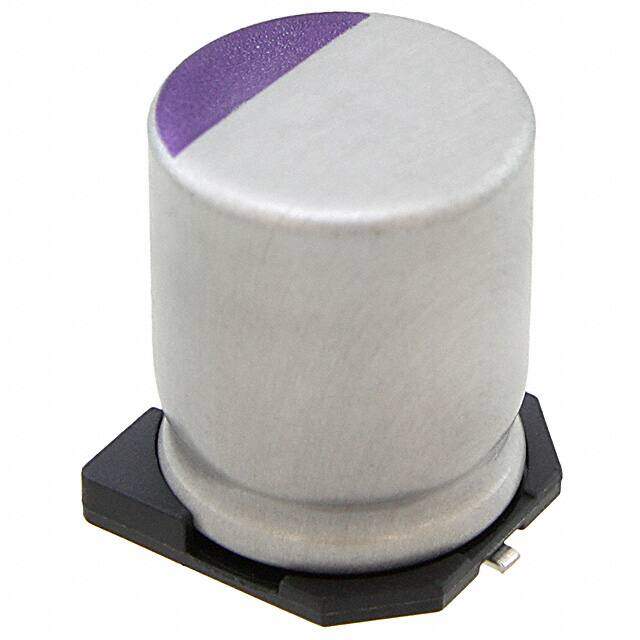

20SVPF560M
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum - Polymer Capacitors
Description
Radial Can - SMD OS-CON? SVPF 20V 560muF ±20% 0.394Dia 10.00mm
PDF
/
Buying Options
Total Price: USD $1.83
Unit Price: USD $1.8304
≥1 USD $1.8304
≥10 USD $1.40448
≥100 USD $1.290256
≥500 USD $1.069816
Inventory: 1161
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape FLAT
Number of Pins 12
Surface Mount Land Size 0.394Lx0.394W 10.00mmx10.00mm
Technical
Operating Temperature -55°C~105°C
Packaging Cut Tape (CT)
Published 2012
Series OS-CON?, SVPF
Size / Dimension 0.394Dia 10.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Polymer
Applications General Purpose
Capacitance 560μF
Voltage - Rated DC 20V
Packing Method TR
ESR (Equivalent Series Resistance) 12mOhm
Polarity Polar
Size Code 4141
Voltage 20V
Lifetime @ Temp 5000 Hrs @ 105°C
Leakage Current 2.24mA
Ripple Current 5.4A
Life (Hours) 5000 hours
Ripple Current @ Low Frequency 270mA @ 120Hz
Ripple Current @ High Frequency 5.4A @ 100kHz
Dissipation Factor 12 %
Ripple Current (AC) 5.4A
Dimensions
Diameter 10mm
Height 12.6mm
Height Seated (Max) 0.500 12.70mm
Length 11mm
Width 10.3mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
