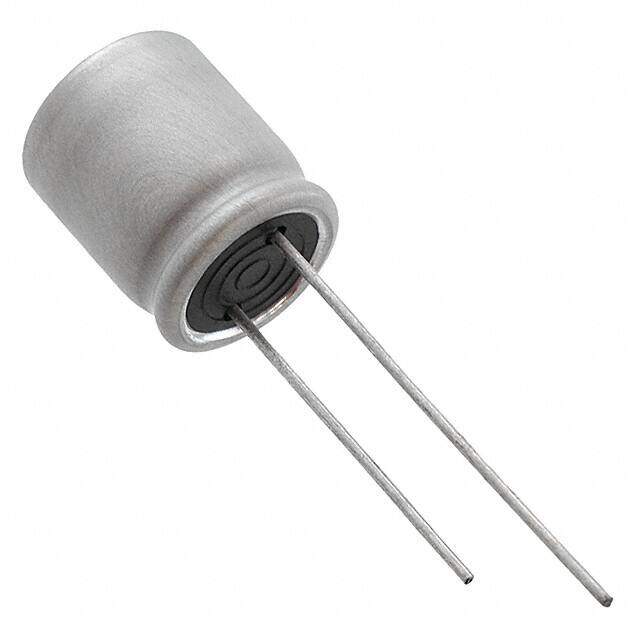

20SEPF560M image
Favorite
20SEPF560M image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Can
Category Capacitors / Aluminum - Polymer Capacitors
Description Radial Can OS-CON? SEPF 20V 560muF ±20% 0.394Dia 10.00mm
PDF
/
Buying Options
Total Price: USD $1.71
Unit Price: USD $1.7072
≥1 USD $1.7072
≥10 USD $1.31472
≥100 USD $1.00144
≥500 USD $0.704528
≥1000 USD $0.654201
≥3000 USD $0.641626
Inventory: 89
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Height Seated (Max) 0.512 13.00mm
Height 13mm
Diameter 10mm

Technical

Dissipation Factor 12 %
Ripple Current @ High Frequency 5.4A @ 100kHz
Ripple Current @ Low Frequency 270mA @ 120Hz
Tan Delta 0.12
Life (Hours) 5000 hours
Ripple Current 5.4A
Leakage Current 2.24mA
Lifetime @ Temp 5000 Hrs @ 105°C
Voltage 20V
Lead Diameter 600 μm
Lead Spacing 0.197 5.00mm
Polarity Polar
ESR (Equivalent Series Resistance) 12mOhm
Lead Pitch 5mm
Voltage - Rated DC 20V
Capacitance 560μF
Applications General Purpose
Type Polymer
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Tolerance ±20%
Size / Dimension 0.394Dia 10.00mm
Series OS-CON?, SEPF
Published 2013
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Number of Pins 13
Terminal Shape WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 10 Weeks
