RR50E152MDN1PH
RoHS
/
Package Radial
Category Capacitors / Aluminum - Polymer Capacitors
Description

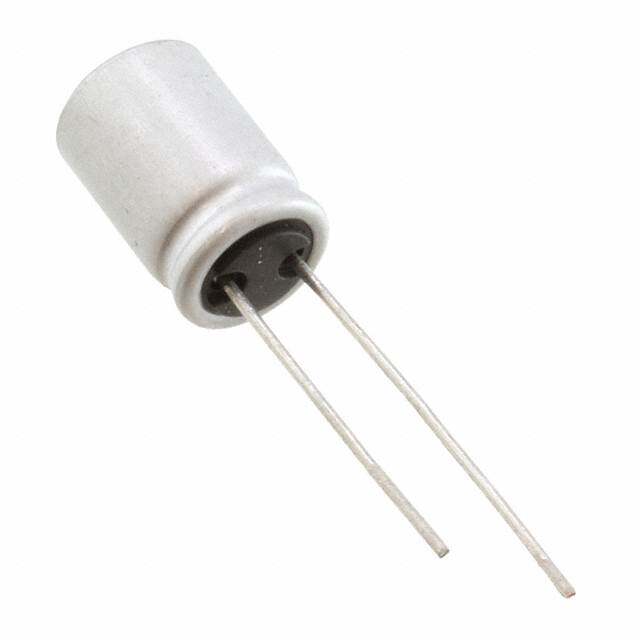

ALUMINUM ELECTROLYTIC CAPACITOR Radial aluminum capacitor 20% 1.5mF 2.5V
PDF
/
Inventory: 5808
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 12.5mm
Height Seated (Max) 13.9954mm
Diameter 10mm
Technical
Tan Delta 0.15
Life (Hours) 2000 hours
Ripple Current 7.22A
Leakage Current 0.938mA
Polarity Polar
ESR (Equivalent Series Resistance) 5mOhm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 5.0038mm
Terminal Pitch 5mm
Packing Method TAPE
Capacitance 1.5mF
HTS Code 8532.22.00
Voltage - Rated 2.5V
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance 20%
Published 2009
Physical
Dielectric Material ALUMINUM (SOLID POLYMER)
Terminal Shape WIRE
Package / Case Radial
Mount Through Hole
Supply Chain
Factory Lead Time 18 Weeks
