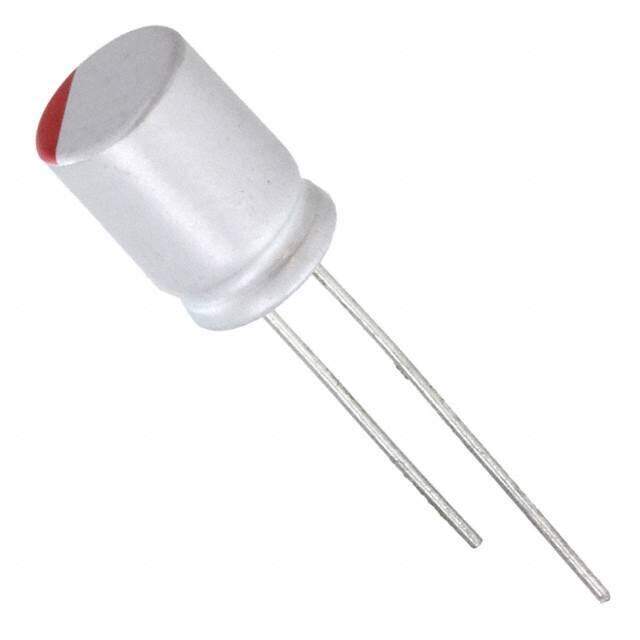

RHT1C331MDN1PH
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum - Polymer Capacitors
Description
FPCAP RHT Radial Can aluminum capacitor 0.394Dia 10.00mm ±20% 330muF 16V
PDF
/
Inventory: 2023
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 12.5mm
Height Seated (Max) 0.551 14.00mm
Diameter 10mm
Technical
Ripple Current @ High Frequency 4.75A @ 100kHz
Ripple Current @ Low Frequency 475mA @ 120Hz
Tan Delta 0.12
Life (Hours) 1000 hours
Ripple Current 4.75A
Leakage Current 1.056mA
Lifetime @ Temp 1000 Hrs @ 125°C
Rated (DC) Voltage (URdc) 16V
Lead Spacing 0.197 5.00mm
Polarity Polar
ESR (Equivalent Series Resistance) 16mOhm
Lead Pitch 5.0038mm
Reach Compliance Code unknown
Terminal Pitch 5mm
Capacitance 330μF
HTS Code 8532.22.00
Voltage - Rated 16V
Applications General Purpose
Terminal Finish Matte Tin (Sn)
Type Polymer
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.394Dia 10.00mm
Series FPCAP, RHT
Published 2015
Packaging Tape & Box (TB)
Operating Temperature -55°C~125°C
Physical
Terminal Shape WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 18 Weeks

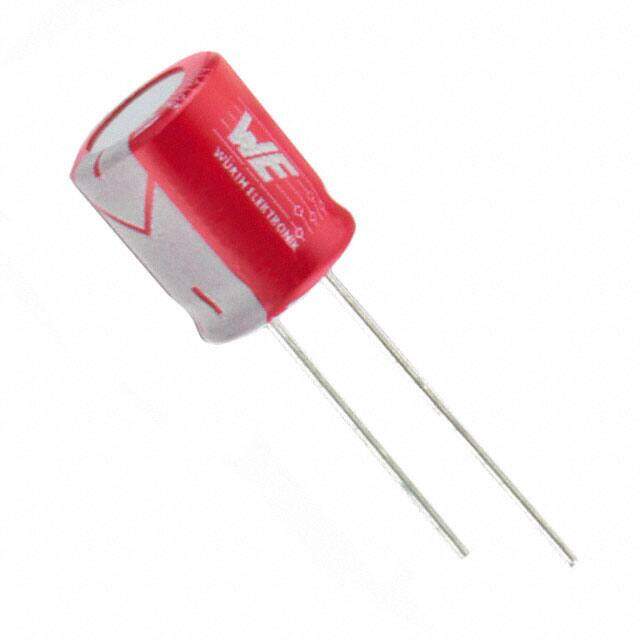

Alternative Model
