RHT1C331MDN1
RoHS
RoHS compliant

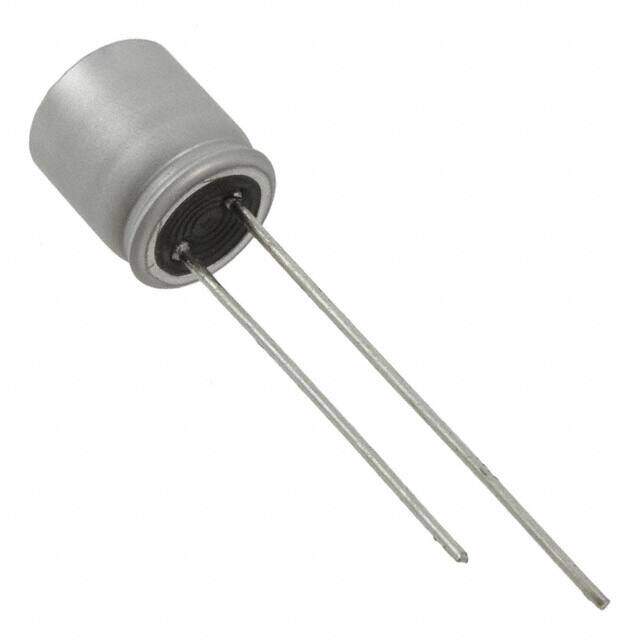

RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum - Polymer Capacitors
Description
Radial Can FPCAP RHT 16V 330muF ±20% 0.394Dia 10.00mm
PDF
/
Buying Options
Total Price: USD $1.46
Unit Price: USD $1.4608
≥1 USD $1.4608
≥10 USD $1.09824
≥100 USD $1.001968
≥500 USD $0.820864
≥1000 USD $0.65516
≥3000 USD $0.578081
Inventory: 741
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 12.5mm
Height Seated (Max) 0.492 12.50mm
Diameter 10mm
Technical
Dissipation Factor 0.12 %
Ripple Current @ High Frequency 4.75A @ 100kHz
Ripple Current @ Low Frequency 475mA @ 120Hz
Life (Hours) 1000 hours
Ripple Current 4.75A
Leakage Current 1.056mA
Lifetime @ Temp 1000 Hrs @ 125°C
Lead Spacing 0.197 5.00mm
Polarity POLARIZED
ESR (Equivalent Series Resistance) 16mOhm
Lead Pitch 5.0038mm
Terminal Pitch 5mm
Voltage - Rated DC 16V
Capacitance 330μF
HTS Code 8532.22.00
Applications General Purpose
Terminal Finish Tin (Sn)
Type Polymer
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.394Dia 10.00mm
Series FPCAP, RHT
Published 2012
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Terminal Shape WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 18 Weeks
