PLV1E271MDL1
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum - Polymer Capacitors
Description

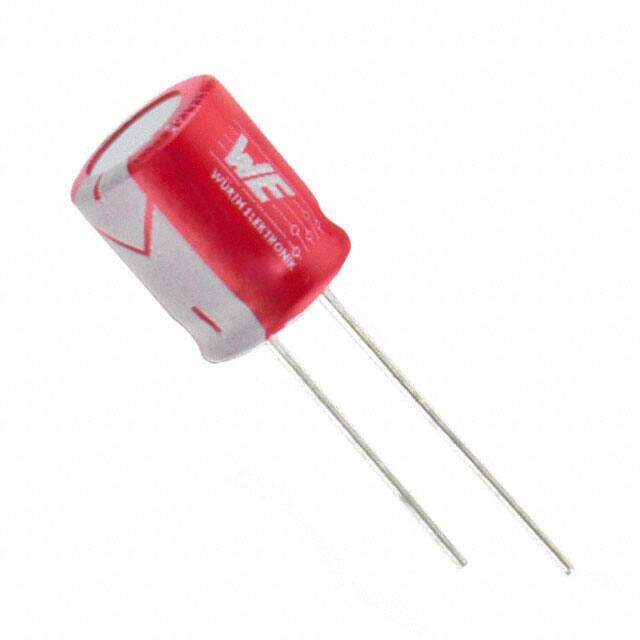

Radial Can PLV 25V 270muF ±20% 0.394Dia 10.00mm
PDF
/
Buying Options
Total Price: USD $2.99
Unit Price: USD $2.992
≥1 USD $2.992
≥10 USD $2.2968
≥100 USD $1.749616
≥500 USD $1.230882
≥1000 USD $1.142962
Inventory: 460
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 13mm
Height Seated (Max) 0.512 13.00mm
Diameter 10mm
Technical
Dissipation Factor 0.12 %
Ripple Current @ High Frequency 2.8A @ 100kHz
Life (Hours) 3000 hours
Ripple Current 2.8A
Leakage Current 1.35mA
Lifetime @ Temp 3000 Hrs @ 105°C
Lead Spacing 0.197 5.00mm
Polarity Polar
ESR (Equivalent Series Resistance) 25mOhm
Lead Pitch 5.0038mm
Terminal Pitch 5mm
Voltage - Rated DC 25V
Capacitance 270μF
HTS Code 8532.22.00
Applications General Purpose
Terminal Finish Tin (Sn)
Type Polymer
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.394Dia 10.00mm
Series PLV
Published 2015
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Terminal Shape WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 17 Weeks
