PLF1D680MCL2TD
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum - Polymer Capacitors
Description

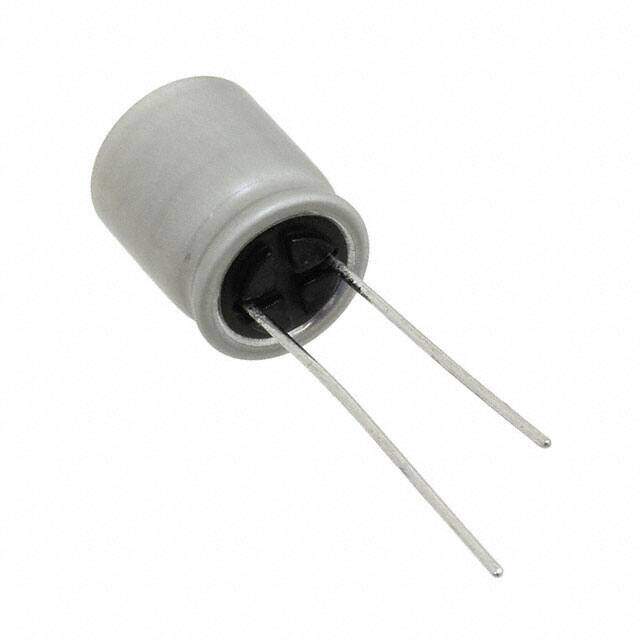

PLF Radial Can aluminum capacitor 0.394Dia 10.00mm ±20% 68muF 20V
PDF
/
Buying Options
Total Price: USD $1.31
Unit Price: USD $1.3112
≥1 USD $1.3112
≥10 USD $0.9856
≥100 USD $0.899008
≥500 USD $0.736472
Inventory: 1072
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.315 8.00mm
Technical
Ripple Current @ High Frequency 2.6A @ 100kHz
Life (Hours) 2000 hours
Ripple Current 2.6A
Lifetime @ Temp 2000 Hrs @ 105°C
Lead Spacing 0.197 5.00mm
Polarity Polar
ESR (Equivalent Series Resistance) 40mOhm
Lead Pitch 5.0038mm
Capacitance 68μF
Voltage - Rated 20V
Applications General Purpose
Type Polymer
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.394Dia 10.00mm
Series PLF
Published 2015
Packaging Tape & Box (TB)
Operating Temperature -55°C~105°C
Physical
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 17 Weeks
