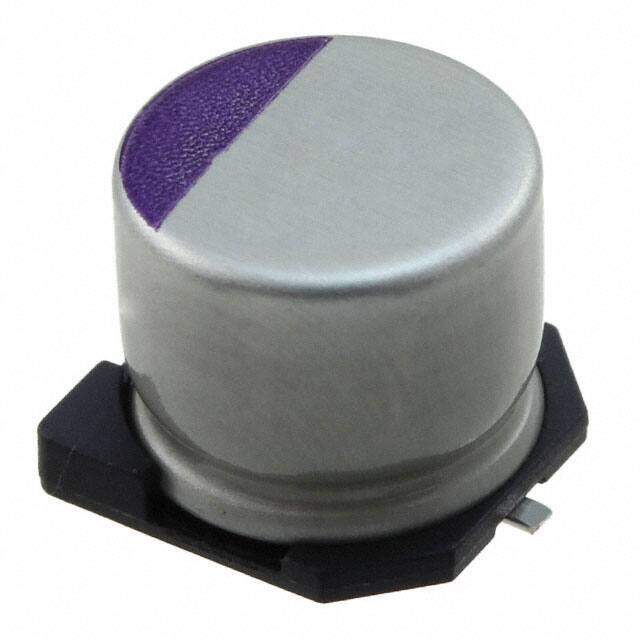

PCJ1A331MCL1GS image
Favorite
PCJ1A331MCL1GS image
Favorite

PCJ1A331MCL1GS

Nichicon
RoHS
RoHS RoHS compliant
Package Radial, Can - SMD
Category Capacitors / Aluminum - Polymer Capacitors
Description Radial Can - SMD PCJ 10V 330muF ±20% 0.315Dia 8.00mm
PDF
/
Buying Options
Total Price: USD $1.51
Unit Price: USD $1.5136
≥1 USD $1.5136
≥10 USD $1.1352
≥100 USD $1.03576
≥500 USD $0.848496
Inventory: 1146
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 8.3mm
Length 9mm
Height Seated (Max) 0.315 8.00mm
Height 8mm
Diameter 8mm

Technical

Ripple Current @ High Frequency 3.39A @ 100kHz
Tan Delta 0.12
Life (Hours) 2000 hours
Ripple Current 3.39A
Leakage Current 0.66mA
Lifetime @ Temp 2000 Hrs @ 105°C
Size Code 3333
Polarity Polar
ESR (Equivalent Series Resistance) 19mOhm
Voltage - Rated DC 10V
Capacitance 330μF
HTS Code 8532.22.00
Applications General Purpose
Terminal Finish Silver (Ag)
Type Polymer
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Tolerance ±20%
Size / Dimension 0.315Dia 8.00mm
Series PCJ
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C

Physical

Surface Mount Land Size 0.327Lx0.327W 8.30mmx8.30mm
Terminal Shape FLAT
Package / Case Radial, Can - SMD
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 17 Weeks
