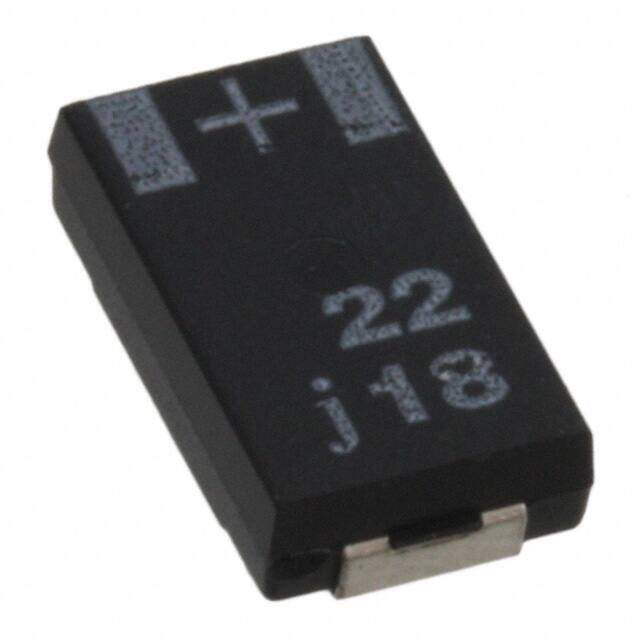

ECASD40J226M045K00
RoHS
RoHS compliant
RoHS compliantPackage 2917 (7343 Metric)
Category Capacitors / Aluminum - Polymer Capacitors
Description
2917 (7343Metric) ECAS 6.3V 22muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Buying Options
Total Price: USD $0.75
Unit Price: USD $0.751379
≥1 USD $0.751379
≥10 USD $0.708846
≥100 USD $0.668722
≥500 USD $0.630873
≥1000 USD $0.595161
Inventory: 1136
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Terminal Shape J BEND
Surface Mount Land Size 0.287Lx0.169W 7.30mmx4.30mm
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Series ECAS
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Polymer
Resistance 45mOhm
Applications General Purpose
Capacitance 22μF
Voltage - Rated DC 6.3V
Packing Method TR, EMBOSSED, 13 INCH
Depth 4.3mm
Case Code (Metric) 7343
Case Code (Imperial) 2917
ESR (Equivalent Series Resistance) 45mOhm
Polarity POLARIZED
Multilayer Yes
Lifetime @ Temp 1000 Hrs @ 105°C
Leakage Current 0.0139mA
Ripple Current 1A
Life (Hours) 1000 hours
Tan Delta 0.06
Ripple Current @ High Frequency 1A @ 100kHz
Dimensions
Height 1.9mm
Height Seated (Max) 0.075 1.90mm
Length 7.3mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
