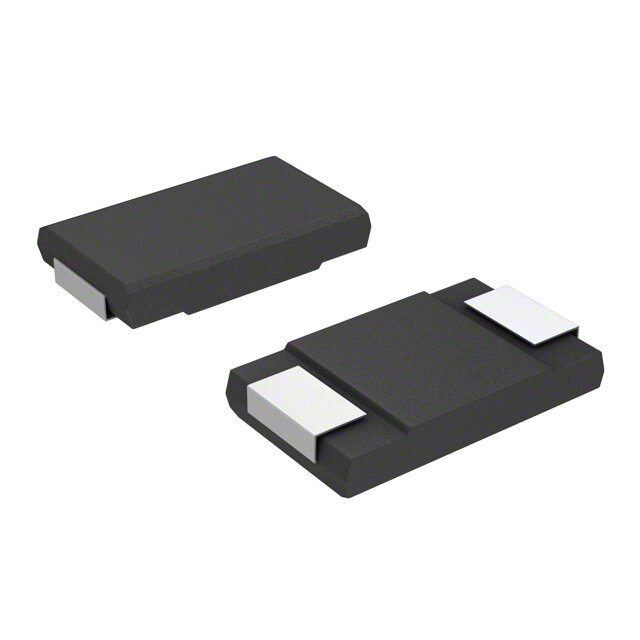

ESRL470M04R
RoHS
RoHS compliant
RoHS compliantPackage 2917 (7343 Metric)
Category Capacitors / Aluminum - Polymer Capacitors
Description
2917 (7343Metric) ESRL 4V 47muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.557099
≥1 USD $1.557099
≥200 USD $0.621002
≥500 USD $0.601308
≥1000 USD $0.590805
Inventory: 1330
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.3mm
Length 7.3mm
Height Seated (Max) 0.043 1.10mm
Technical
Ripple Current @ High Frequency 1.6A @ 100kHz
Tan Delta 0.06
Life (Hours) 1000 hours
Ripple Current 1.6A
Leakage Current 0.01128mA
Lifetime @ Temp 1000 Hrs @ 105°C
Rated (DC) Voltage (URdc) 4V
Polarity POLARIZED
ESR (Equivalent Series Resistance) 35mOhm
Packing Method TR
Voltage - Rated DC 4V
Capacitance 47μF
Applications Bypass, Decoupling
Terminal Finish Tin (Sn)
Type Polymer
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Series ESRL
Published 2002
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C
Physical
Surface Mount Land Size 0.287Lx0.169W 7.30mmx4.30mm
Terminal Shape J BEND
Package / Case 2917 (7343 Metric)
Mounting Type Surface Mount
Mount Surface Mount
