865080243006
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum Electrolytic Capacitors
Description

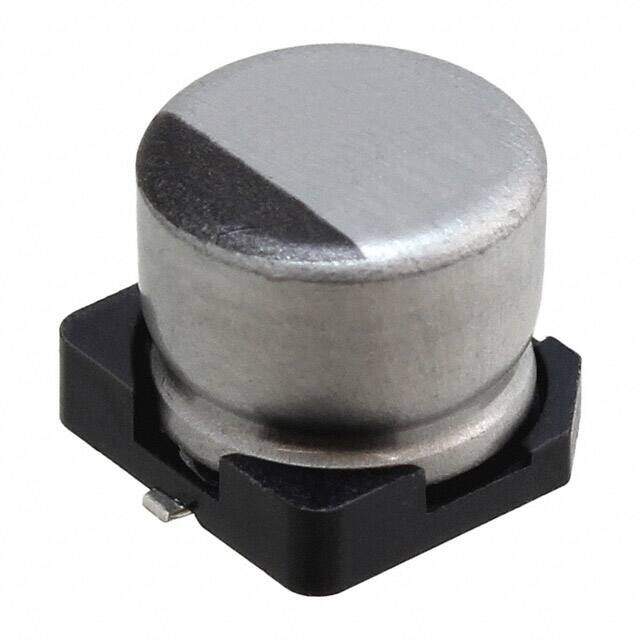

Radial Can - SMD WCAP-ASLI 10V 68muF ±20% 0.248Dia 6.30mm
PDF
/
Buying Options
Total Price: USD $0.22
Unit Price: USD $0.223531
≥1 USD $0.223531
≥10 USD $0.21088
≥100 USD $0.198942
≥500 USD $0.187681
≥1000 USD $0.177058
Inventory: 1548
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height Seated (Max) 0.217 5.50mm
Height 5.5mm
Diameter 6.3mm
Technical
Ripple Current (AC) 220mA
Ripple Current @ High Frequency 220mA @ 100kHz
Ripple Current @ Low Frequency 143mA @ 120Hz
Impedance 550mOhms
Life (Hours) 2000 hours
Polarization Polar
Ripple Current 220mA
Lifetime @ Temp 2000 Hrs @ 105°C
Polarity Polar
Voltage - Rated DC 10V
Capacitance 68μF
Voltage - Rated 10V
Applications General Purpose
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.248Dia 6.30mm
Series WCAP-ASLI
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C
Physical
Surface Mount Land Size 0.260Lx0.260W 6.60mmx6.60mm
Material Aluminium
Package / Case Radial, Can - SMD
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 24 Weeks
