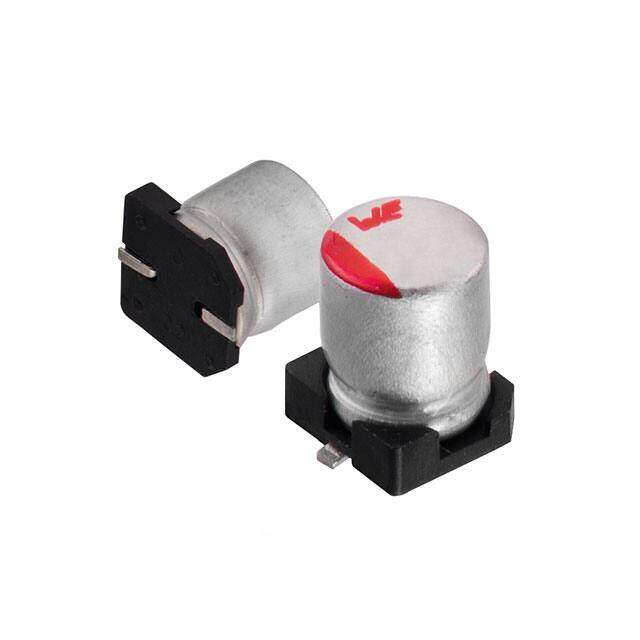

865060145006
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - SMD WCAP-ASLL 6.3V 220muF ±20% 0.248Dia 6.30mm
PDF
/
Buying Options
Total Price: USD $0.29
Unit Price: USD $0.289801
≥1 USD $0.289801
≥10 USD $0.273396
≥100 USD $0.25792
≥500 USD $0.243329
≥1000 USD $0.229556
Inventory: 3115
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height Seated (Max) 0.303 7.70mm
Height 7.7mm
Diameter 6.3mm
Technical
Ripple Current (AC) 280mA
Ripple Current @ High Frequency 280mA @ 100kHz
Ripple Current @ Low Frequency 182mA @ 120Hz
Impedance 360mOhms
Life (Hours) 2000 hours
Polarization Polar
Ripple Current 280mA
Lifetime @ Temp 2000 Hrs @ 105°C
Polarity Polar
Voltage - Rated DC 6.3V
Capacitance 220μF
Voltage - Rated 6.3V
Applications General Purpose
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.248Dia 6.30mm
Series WCAP-ASLL
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C
Physical
Surface Mount Land Size 0.260Lx0.260W 6.60mmx6.60mm
Material Aluminium
Package / Case Radial, Can - SMD
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 24 Weeks
Alternative Model
