861011483006
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description

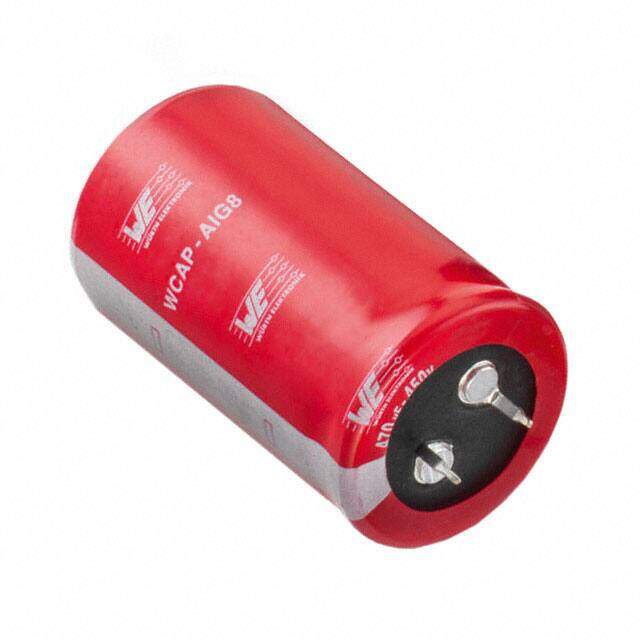

Radial Can - Snap-In WCAP-AIG8 450V 150muF ±20% 0.866Dia 22.00mm
PDF
/
Inventory: 9059
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Technical
Operating Temperature -25°C~85°C
Packaging Tray
Series WCAP-AIG8
Size / Dimension 0.866Dia 22.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Applications General Purpose
Voltage - Rated 450V
Capacitance 150μF
Voltage - Rated DC 450V
Lead Pitch 10.0076mm
Polarity Polar
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 2000 Hrs @ 85°C
Ripple Current 1.39A
Polarization Polar
Life (Hours) 2000 hours
Ripple Current @ Low Frequency 1.39A @ 120Hz
Ripple Current @ High Frequency 1.9182A @ 100kHz
Dimensions
Diameter 22mm
Height 51mm
Height Seated (Max) 2.087 53.00mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
