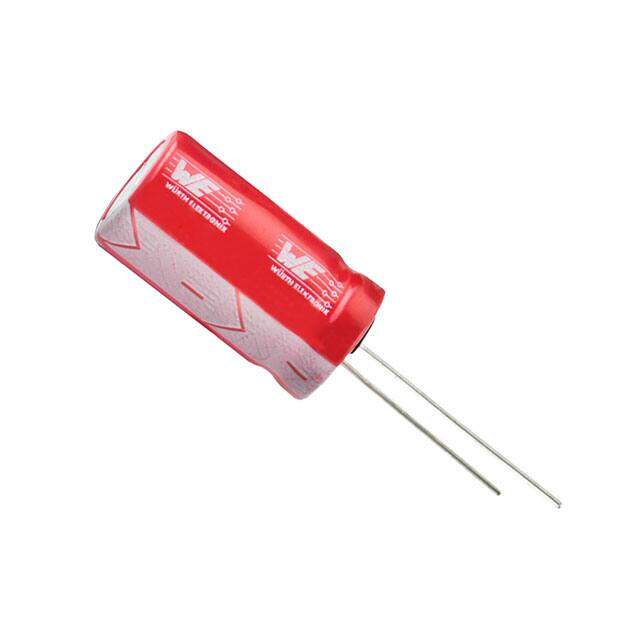

860130478009
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can WCAP-ATET 25V 470muF ±20% 0.512Dia 13.00mm
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.67918
≥1 USD $0.67918
≥10 USD $0.640743
≥100 USD $0.604475
≥500 USD $0.57026
≥1000 USD $0.53798
Inventory: 1235
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Box (TB)
Series WCAP-ATET
Size / Dimension 0.512Dia 13.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Applications General Purpose
Voltage - Rated 25V
Capacitance 470μF
Voltage - Rated DC 25V
Lead Pitch 5.0038mm
Polarity Polar
Lead Spacing 0.197 5.00mm
Lifetime @ Temp 2000 Hrs @ 125°C
Ripple Current 810mA
Polarization Polar
Life (Hours) 2000 hours
Ripple Current @ Low Frequency 810mA @ 120Hz
Ripple Current @ High Frequency 1.1178A @ 100kHz
Dimensions
Diameter 13mm
Height 20mm
Height Seated (Max) 0.846 21.50mm
Compliance
RoHS Status ROHS3 Compliant

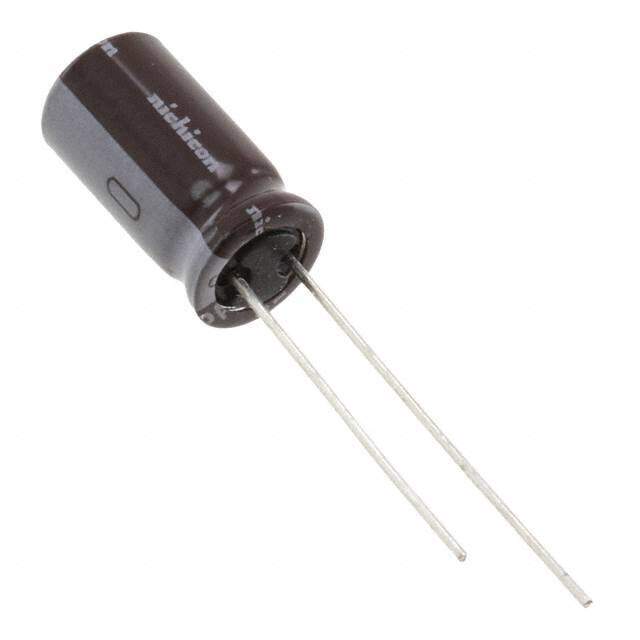

Alternative Model
