860040673003
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description

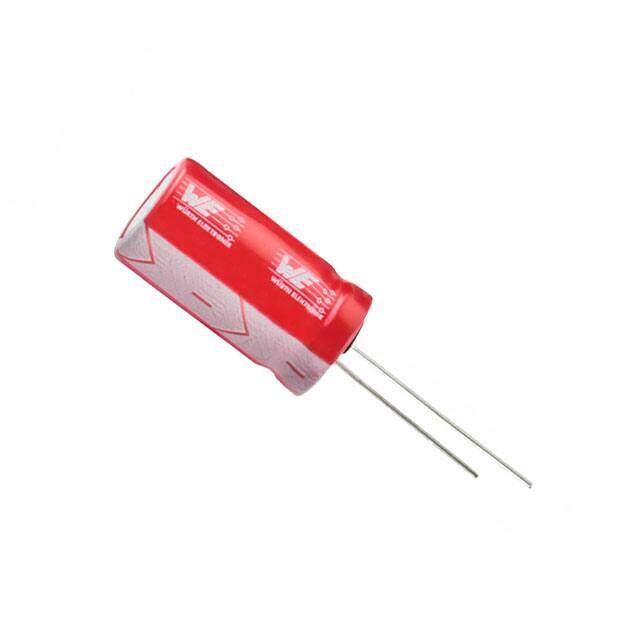

Radial Can WCAP-ATUL 50V 56muF ±20% 0.248Dia 6.30mm
PDF
/
Buying Options
Total Price: USD $0.19
Unit Price: USD $0.1936
≥1 USD $0.1936
≥10 USD $0.16544
≥100 USD $0.14432
≥500 USD $0.12848
≥1000 USD $0.11264
Inventory: 4123
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Material Aluminium
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Box (TB)
Series WCAP-ATUL
Size / Dimension 0.248Dia 6.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Applications General Purpose
Voltage - Rated 50V
Capacitance 56μF
Voltage - Rated DC 50V
Lead Pitch 2.4892mm
Polarity Polar
Lead Spacing 0.098 2.50mm
Lifetime @ Temp 5000 Hrs @ 105°C
Ripple Current 300mA
Polarization Polar
Life (Hours) 5000 hours
Impedance 290mOhms
Ripple Current @ Low Frequency 201mA @ 120Hz
Ripple Current @ High Frequency 300mA @ 100kHz
Dimensions
Diameter 6.3mm
Height 11mm
Height Seated (Max) 0.492 12.50mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
