MAL219856689E3
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
198PHR-SI ALUMINUM ELECTROLYTIC CAPACITOR Radial Can - Snap-In aluminum electrolytic capacitor 0.866Dia 22.00mm ±20% 68muF 400V
PDF
/
Inventory: 7225
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2015
Series 198 PHR-SI
Size / Dimension 0.866Dia 22.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination Snap in
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Voltage - Rated 400V
Capacitance 68μF
Terminal Pitch 10mm
Lead Pitch 10.0076mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 1.405Ohm @ 100Hz
Lead Spacing 0.394 10.00mm
Rated (DC) Voltage (URdc) 400V
Lifetime @ Temp 15000 Hrs @ 85°C
Leakage Current 0.167mA
Ripple Current 790mA
Polarization Polar
Life (Hours) 15000 hours
Impedance 905mOhm
Ripple Current @ Low Frequency 790mA @ 100Hz
Dimensions
Diameter 22mm
Height 25mm
Height Seated (Max) 1.063 27.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant

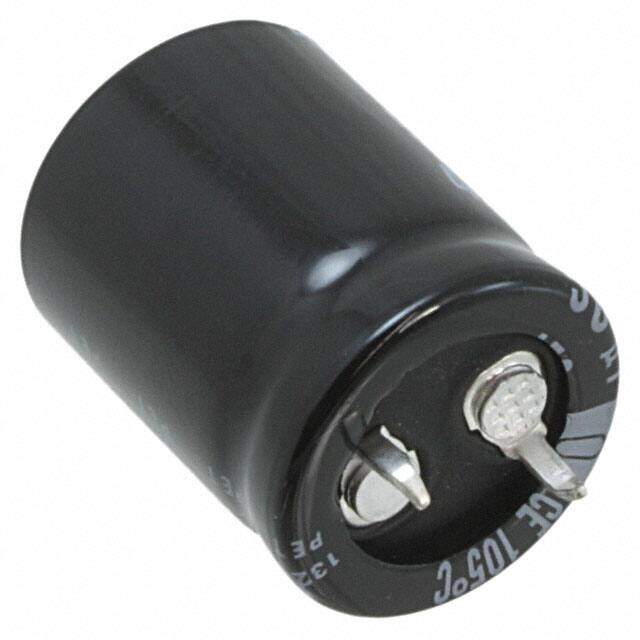

Alternative Model
