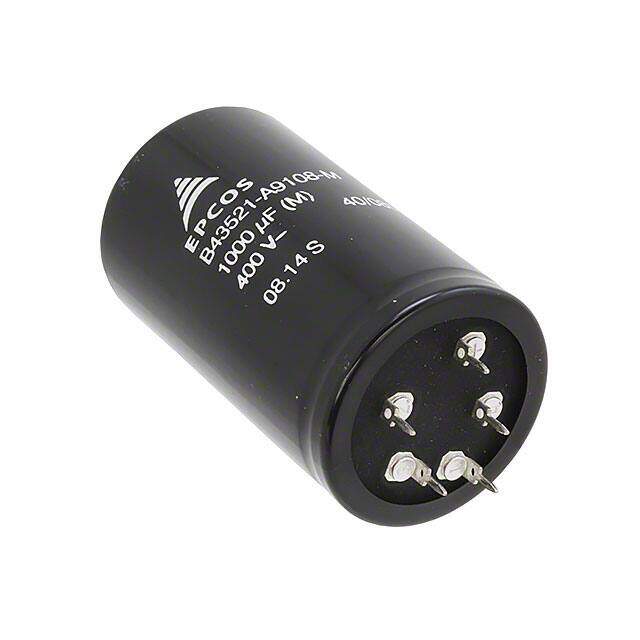

B43521A9108M000
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - 5 Lead
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - 5Lead ALUMINUM ELECTROLYTIC CAPACITOR B43521 400V 1000muF ±20% 1.575Dia 40.00mm
PDF
/
Buying Options
Total Price: USD $26.58
Unit Price: USD $26.5848
≥1 USD $26.5848
≥10 USD $23.784534
≥100 USD $21.685734
≥500 USD $19.431738
Inventory: 98
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 70mm
Height Seated (Max) 2.913 74.00mm
Diameter 40mm
Technical
Ripple Current @ Low Frequency 5.1A @ 100Hz
Impedance 110mOhm
Polarization Polar
Leakage Current 2.50759mA
Lifetime @ Temp 12000 Hrs @ 85°C
Rated (DC) Voltage (URdc) 400V
ESR (Equivalent Series Resistance) 90mOhm @ 100Hz
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Packing Method CARDBOARD
Capacitance 1000μF
Additional Feature REFERENCE STANDARD: IEC60384-4
Voltage - Rated 400V
Applications General Purpose
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 1.575Dia 40.00mm
Series B43521
Published 2012
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Dielectric Material ALUMINUM (WET)
Terminal Shape FLAT
Surface Mount NO
Package / Case Radial, Can - 5 Lead
Mounting Type Through Hole
Supply Chain
Factory Lead Time 20 Weeks
