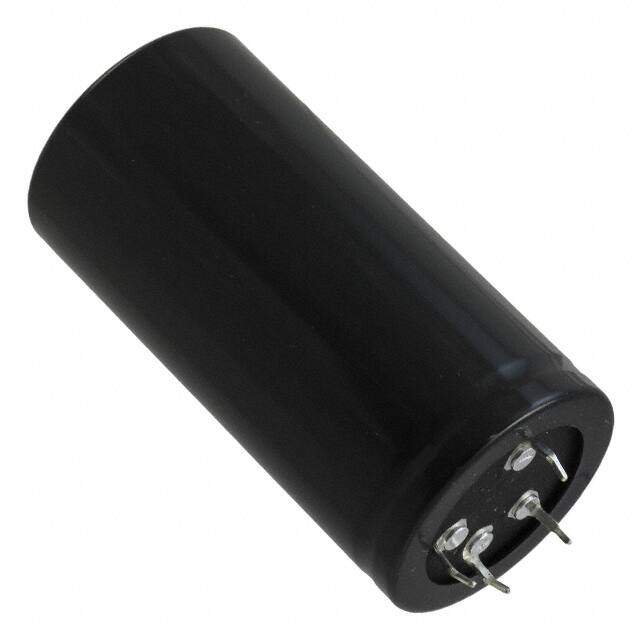

B43510A5128M000
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In - 4 Lead
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In - 4Lead ALUMINUM ELECTROLYTIC CAPACITOR B43510 450V 1200muF ±20% 1.378Dia 35.00mm
PDF
/
Inventory: 8781
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In - 4 Lead
Surface Mount NO
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series B43510
Size / Dimension 1.378Dia 35.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Voltage - Rated 450V
Capacitance 1200μF
Packing Method CARDBOARD
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 90mOhm @ 100Hz
Lead Spacing 0.984 25.00mm
Rated (DC) Voltage (URdc) 450V
Lifetime @ Temp 5000 Hrs @ 85°C
Leakage Current 3.09285mA
Polarization Polar
Impedance 130mOhm
Ripple Current @ Low Frequency 5.84A @ 100Hz
Dimensions
Diameter 40mm
Height Seated (Max) 4.016 102.00mm
Length 80mm
Compliance
RoHS Status ROHS3 Compliant
