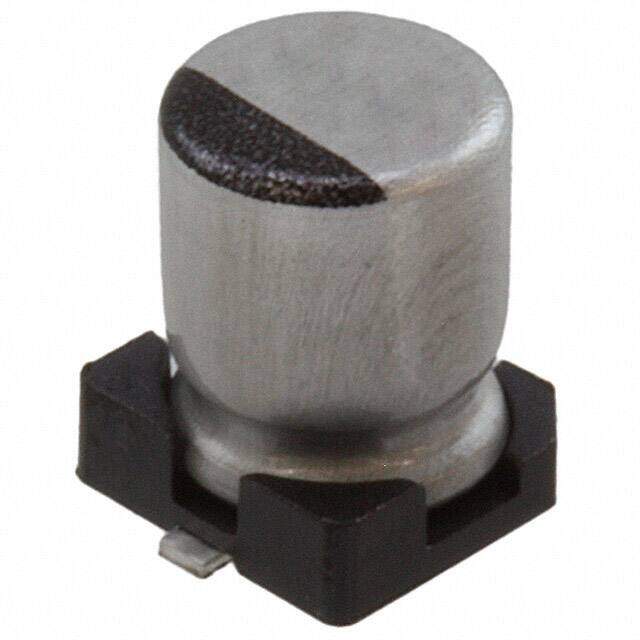

6.3SKV47M5X5.5
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - SMD ALUMINUM ELECTROLYTIC CAPACITOR SKV 6.3V 47muF ±20% 0.197Dia 5.00mm
PDF
/
Buying Options
Total Price: USD $0.36
Unit Price: USD $0.3608
≥1 USD $0.3608
≥10 USD $0.22528
≥100 USD $0.164736
≥500 USD $0.145288
Inventory: 1112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape FLAT
Dielectric Material ALUMINUM (WET)
Surface Mount Land Size 0.209Lx0.209W 5.30mmx5.30mm
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Series SKV
Size / Dimension 0.197Dia 5.00mm
Tolerance ±20%
JESD-609 Code e6
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Bismuth (Sn/Bi)
Applications General Purpose
Voltage - Rated 6.3V
Capacitance 47μF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Rated (DC) Voltage (URdc) 6.3V
Size Code 2121
Lifetime @ Temp 1000 Hrs @ 105°C
Leakage Current 0.003mA
Ripple Current 37mA
Polarization Polar
Life (Hours) 1000 hours
Tan Delta 0.3
Ripple Current @ Low Frequency 37mA @ 120Hz
Ripple Current @ High Frequency 55.5mA @ 10kHz
Dimensions
Height Seated (Max) 0.217 5.50mm
Compliance
RoHS Status ROHS3 Compliant
