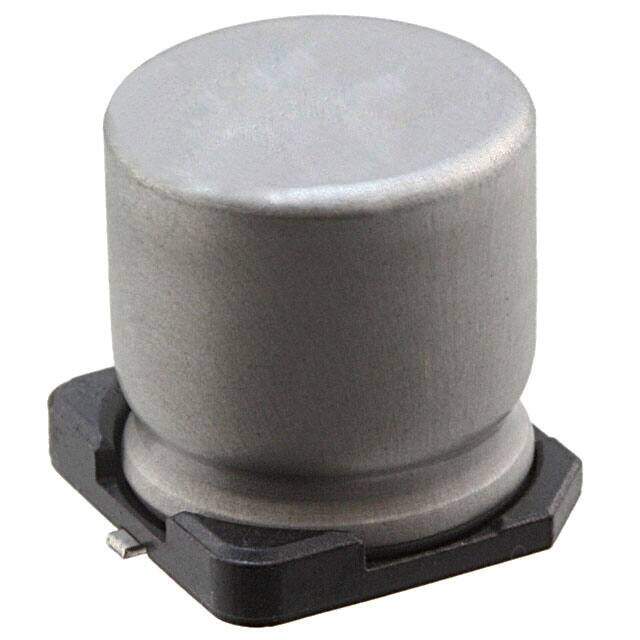

50NSEV4.7M6.3X5.5
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - SMD ALUMINUM ELECTROLYTIC CAPACITOR NSEV 50V 4.7muF ±20% 0.248Dia 6.30mm
PDF
/
Inventory: 5801
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape FLAT
Dielectric Material ALUMINUM (WET)
Surface Mount Land Size 0.260Lx0.260W 6.60mmx6.60mm
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series NSEV
Size / Dimension 0.248Dia 6.30mm
Tolerance ±20%
JESD-609 Code e6
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Bismuth (Sn/Bi)
Applications General Purpose
Voltage - Rated 50V
Capacitance 4.7μF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Polarity POLARIZED
Rated (DC) Voltage (URdc) 50V
Size Code 2626
Lifetime @ Temp 2000 Hrs @ 85°C
Leakage Current 0.01175mA
Ripple Current 20mA
Polarization Bi-Polar
Life (Hours) 2000 hours
Tan Delta 0.18
Ripple Current @ Low Frequency 20mA @ 120Hz
Ripple Current @ High Frequency 30mA @ 10kHz
Dimensions
Height Seated (Max) 0.217 5.50mm
Compliance
RoHS Status ROHS3 Compliant
