35ZLG330MEFCT810X16
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description

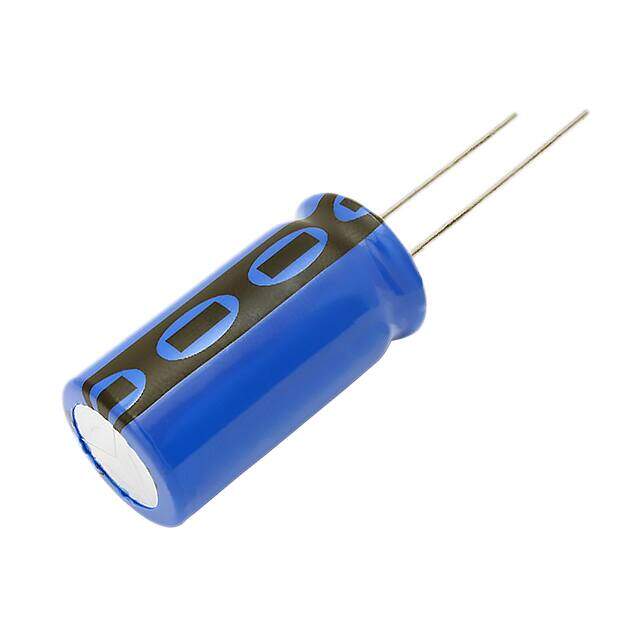

ZLG Radial Can aluminum electrolytic capacitor 0.394Dia 10.00mm ±20% 330muF 35V
PDF
/
Inventory: 5416
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.689 17.50mm
Technical
Ripple Current @ High Frequency 1.82A @ 100kHz
Ripple Current @ Low Frequency 1.001A @ 120Hz
Impedance 20mOhm
Life (Hours) 4000 hours
Polarization Polar
Ripple Current 1.82A
Lifetime @ Temp 4000 Hrs @ 105°C
Lead Spacing 0.197 5.00mm
Lead Pitch 5.0038mm
Capacitance 330μF
Voltage - Rated 35V
Applications General Purpose
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.394Dia 10.00mm
Series ZLG
Published 2015
Packaging Tape & Box (TB)
Operating Temperature -40°C~105°C
Physical
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 20 Weeks
