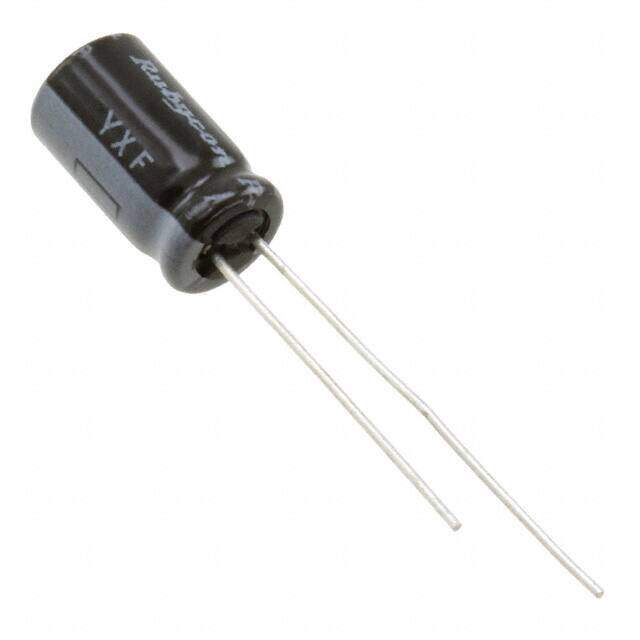

35YXF47MEFCT16.3X11
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can YXF 35V 47muF ±20% 0.248Dia 6.30mm
PDF
/
Buying Options
Total Price: USD $0.05
Unit Price: USD $0.045171
≥1 USD $0.045171
≥10 USD $0.036036
≥100 USD $0.03147
Inventory: 34
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Box (TB)
Series YXF
Size / Dimension 0.248Dia 6.30mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Applications General Purpose
Voltage - Rated 35V
Capacitance 47μF
Lead Pitch 2.4892mm
Lead Spacing 0.098 2.50mm
Lifetime @ Temp 5000 Hrs @ 105°C
Ripple Current 175mA
Polarization Polar
Life (Hours) 5000 hours
Impedance 400mOhm
Ripple Current @ Low Frequency 175mA @ 120Hz
Ripple Current @ High Frequency 250mA @ 100kHz
Dimensions
Diameter 6.3mm
Height 11mm
Height Seated (Max) 0.492 12.50mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Alternative Model
