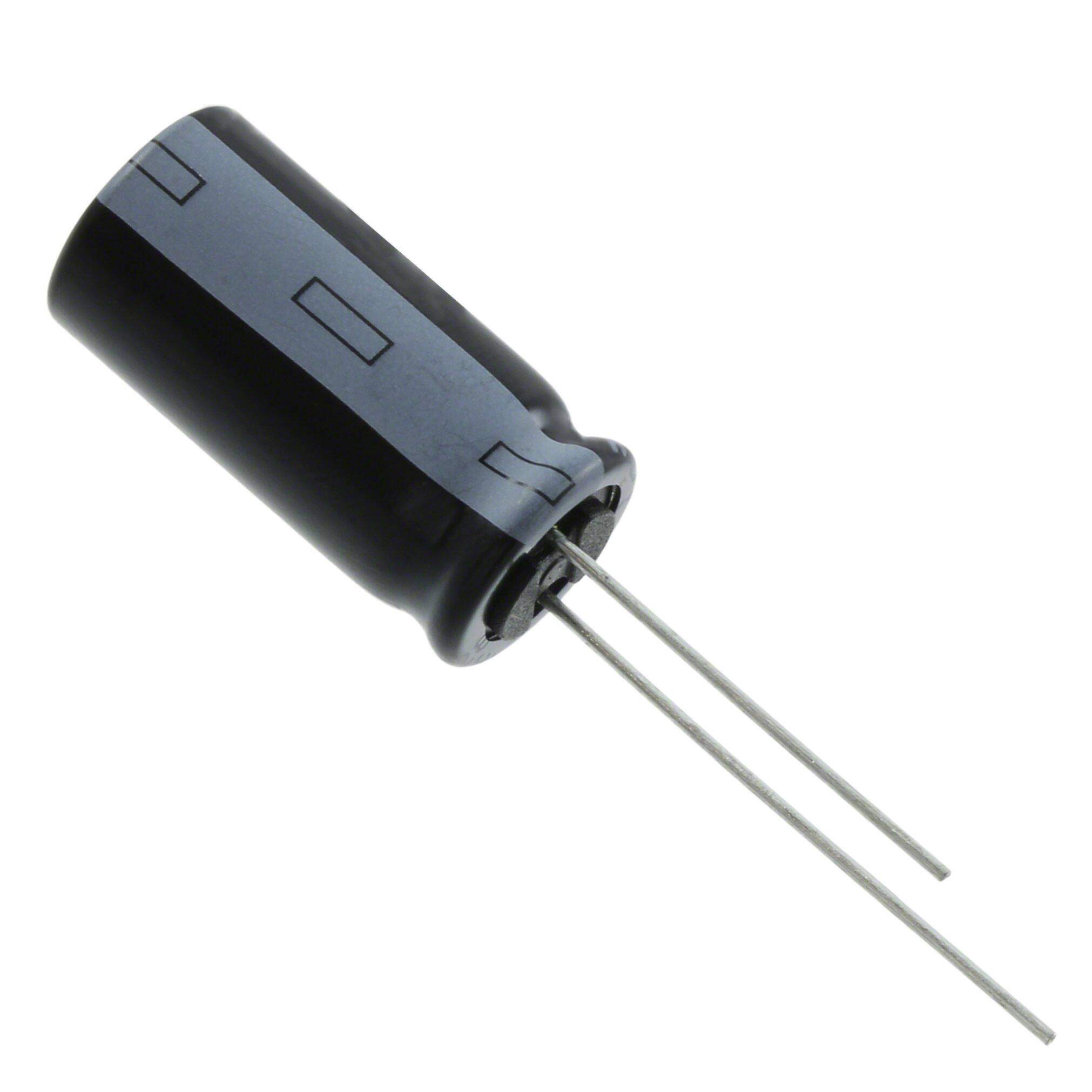

25ZLK820M10X20
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
ZLK Radial Can aluminum electrolytic capacitor 0.394Dia 10.00mm ±20% 820muF 25V
PDF
/
Inventory: 3953
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2009
Series ZLK
Size / Dimension 0.394Dia 10.00mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Applications General Purpose
Capacitance 820μF
Voltage - Rated DC 25V
Lead Pitch 5mm
ESR (Equivalent Series Resistance) 84mOhm
Lead Spacing 0.197 5.00mm
Lead Diameter 600 μm
Voltage 25V
Lifetime @ Temp 5000 Hrs @ 105°C
Ripple Current 864mA
Polarization Polar
Life (Hours) 5000 hours
Impedance 28mOhm
Ripple Current @ Low Frequency 864mA @ 120Hz
Ripple Current @ High Frequency 2.88A @ 100kHz
Ripple Current (AC) 2.88A
Dimensions
Diameter 10mm
Height 20mm
Height Seated (Max) 0.866 22.00mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
