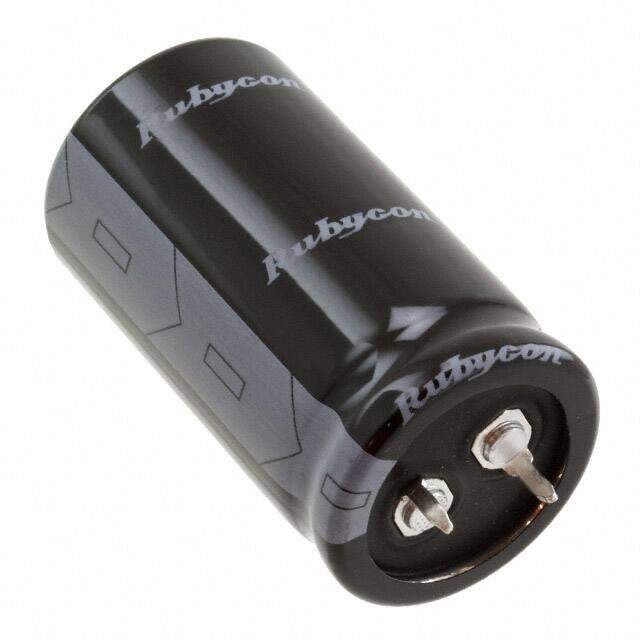

250MXC560MEFCSN22X50
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
MXC ALUMINUM ELECTROLYTIC CAPACITOR Radial Can - Snap-In aluminum electrolytic capacitor 0.866Dia 22.00mm ±20% 560muF 250V
PDF
/
Inventory: 4524
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2008
Series MXC
Size / Dimension 0.866Dia 22.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 560μF
Voltage - Rated DC 250V
Terminal Pitch 10mm
Lead Pitch 10.0076mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 3000 Hrs @ 105°C
Leakage Current 1.1225mA
Ripple Current 1.72A
Polarization Polar
Life (Hours) 3000 hours
Tan Delta 0.15
Ripple Current @ Low Frequency 1.72A @ 120Hz
Ripple Current @ High Frequency 2.58A @ 10kHz
Dimensions
Diameter 22mm
Height 50mm
Height Seated (Max) 2.047 52.00mm
Compliance
RoHS Status ROHS3 Compliant
