200USC470MEFCSN22X30
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description

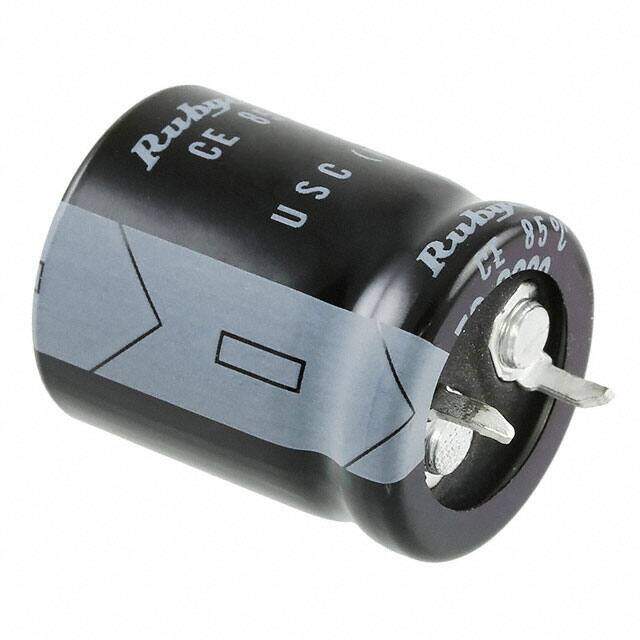

USC ALUMINUM ELECTROLYTIC CAPACITOR Radial Can - Snap-In aluminum electrolytic capacitor 0.866Dia 22.00mm ±20% 470muF 200V
PDF
/
Inventory: 5623
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series USC
Size / Dimension 0.866Dia 22.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 470μF
Voltage - Rated DC 200V
Terminal Pitch 10mm
Lead Pitch 10.0076mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 3000 Hrs @ 85°C
Leakage Current 0.91979mA
Ripple Current 1.97A
Polarization Polar
Life (Hours) 3000 hours
Tan Delta 0.15
Ripple Current @ Low Frequency 1.97A @ 120Hz
Ripple Current @ High Frequency 2.955A @ 10kHz
Dimensions
Diameter 22mm
Height 30mm
Height Seated (Max) 1.260 32.00mm
Compliance
RoHS Status ROHS3 Compliant
