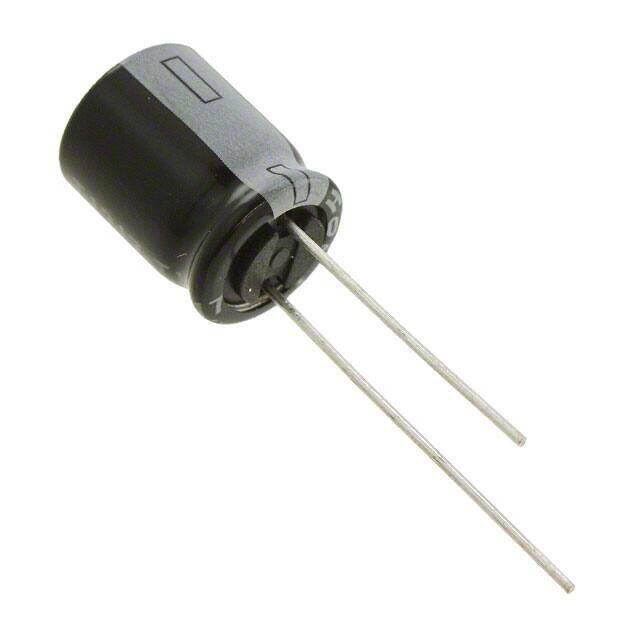

16ZLH680MCE10X12.5
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
ZLH ALUMINUM ELECTROLYTIC CAPACITOR Radial Can aluminum electrolytic capacitor 0.394Dia 10.00mm ±20% 680muF 16V
PDF
/
Inventory: 3702
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series ZLH
Size / Dimension 0.394Dia 10.00mm
Tolerance ±20%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Voltage - Rated 16V
Capacitance 680μF
Terminal Pitch 5mm
Lead Pitch 5.0038mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.197 5.00mm
Rated (DC) Voltage (URdc) 16V
Lifetime @ Temp 10000 Hrs @ 105°C
Leakage Current 0.1088mA
Ripple Current 731.5mA
Polarization Polar
Life (Hours) 10000 hours
Tan Delta 0.16
Impedance 39mOhm
Ripple Current @ Low Frequency 731.5mA @ 120Hz
Ripple Current @ High Frequency 1.33A @ 100kHz
Dimensions
Diameter 10mm
Height Seated (Max) 0.551 14.00mm
Length 12.5mm
Compliance
RoHS Status ROHS3 Compliant
