16JZV47M6.3X6.1
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum Electrolytic Capacitors
Description

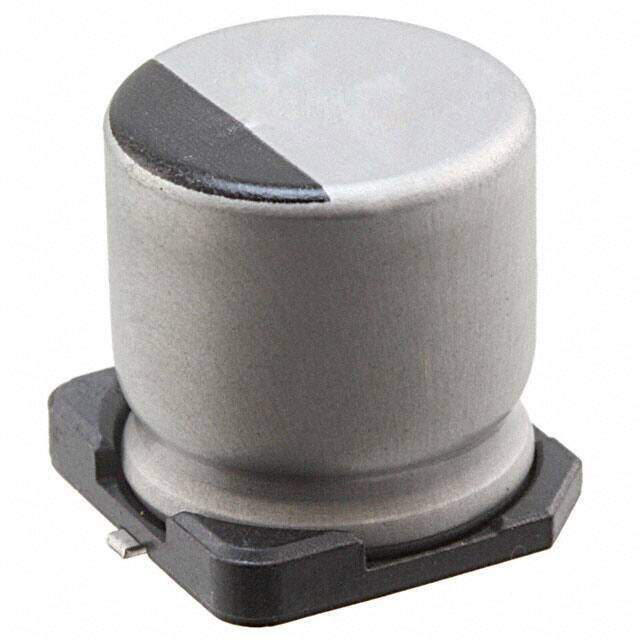

JZV ALUMINUM ELECTROLYTIC CAPACITOR Radial Can - SMD aluminum electrolytic capacitor 0.248Dia 6.30mm ±20% 47muF 16V
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5368
≥1 USD $0.5368
≥10 USD $0.3388
≥100 USD $0.249744
≥500 USD $0.221496
≥1000 USD $0.173325
Inventory: 1067
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape FLAT
Dielectric Material ALUMINUM (WET)
Surface Mount Land Size 0.260Lx0.260W 6.60mmx6.60mm
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Series JZV
Size / Dimension 0.248Dia 6.30mm
Tolerance ±20%
JESD-609 Code e6
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Bismuth (Sn/Bi)
Applications Automotive, High Temperature Reflow
Voltage - Rated 16V
Capacitance 47μF
Packing Method TR
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Rated (DC) Voltage (URdc) 16V
Size Code 2826
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 0.00752mA
Ripple Current 125mA
Polarization Polar
Life (Hours) 2000 hours
Tan Delta 0.16
Impedance 360mOhm
Ripple Current @ Low Frequency 80mA @ 120Hz
Ripple Current @ High Frequency 250mA @ 100kHz
Dimensions
Height Seated (Max) 0.240 6.10mm
Length 7.2mm
Width 6.6mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
