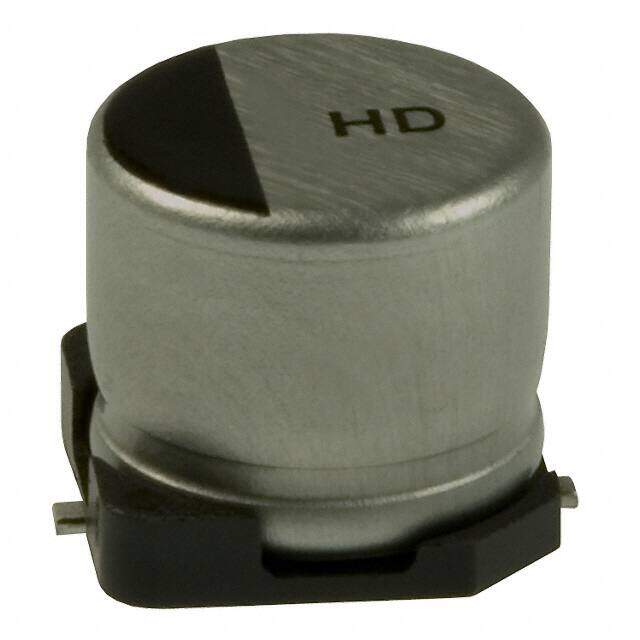

EEV-HD2A3R3P
RoHS
/
Package Radial, Can - SMD
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - SMD ALUMINUM ELECTROLYTIC CAPACITOR HD-V 100V 3.3muF ±20% 0.315Dia 8.00mm
PDF
/
Inventory: 10027
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 8.3mm
Length 9.5mm
Height Seated (Max) 0.244 6.20mm
Technical
Custom Capabilities Vibration-Proof Available On Request
ESR 2000 mΩ
Ripple Current @ High Frequency 51mA @ 10kHz
Ripple Current @ Low Frequency 30mA @ 120Hz
Impedance 2Ohm
Tan Delta 0.18
Polarization Polar
Leakage Current 0.0033mA
Lifetime @ Temp 5000 Hrs @ 105°C
Size Code 3333
Rated (DC) Voltage (URdc) 100V
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Reach Compliance Code unknown
Capacitance 3.3μF
Additional Feature ESR IS MEASURED AT 100 KHZ
Voltage - Rated 100V
Applications General Purpose
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e0
Tolerance ±20%
Size / Dimension 0.315Dia 8.00mm
Series HD-V
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Surface Mount Land Size 0.327Lx0.327W 8.30mmx8.30mm
Dielectric Material ALUMINUM (WET)
Terminal Shape ONE SURFACE
Package / Case Radial, Can - SMD
Mounting Type Surface Mount
