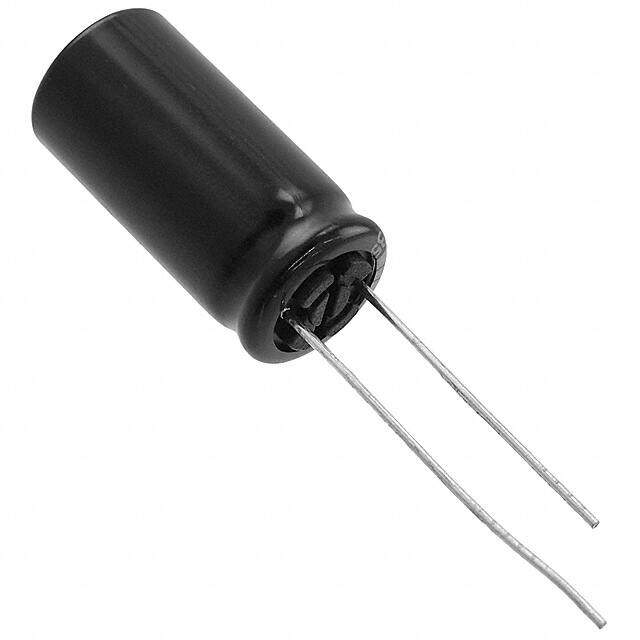

EEU-TP1V331B
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR TP 35V 330muF ±20% 0.394Dia 10.00mm
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.584
≥1 USD $1.584
≥10 USD $1.19152
≥100 USD $1.086624
≥500 USD $0.890208
Inventory: 626
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Height Seated (Max) 0.866 22.00mm
Height 20mm
Diameter 10mm
Technical
Lead/Base Style Straight
Ripple Current @ High Frequency 1.1A @ 100kHz
Ripple Current @ Low Frequency 1.001A @ 120Hz
Life (Hours) 2000 hours
Polarization Polar
Ripple Current 1.1A
Lifetime @ Temp 3000 Hrs @ 125°C
Lead Spacing 0.197 5.00mm
ESR (Equivalent Series Resistance) 52mOhm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 5mm
Voltage - Rated DC 35V
Capacitance 330μF
Applications Automotive
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature General Purpose
Tolerance ±20%
Size / Dimension 0.394Dia 10.00mm
Series TP
Published 2010
Packaging Tape & Box (TB)
Operating Temperature -40°C~135°C
Physical
Dielectric Material ALUMINUM
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
