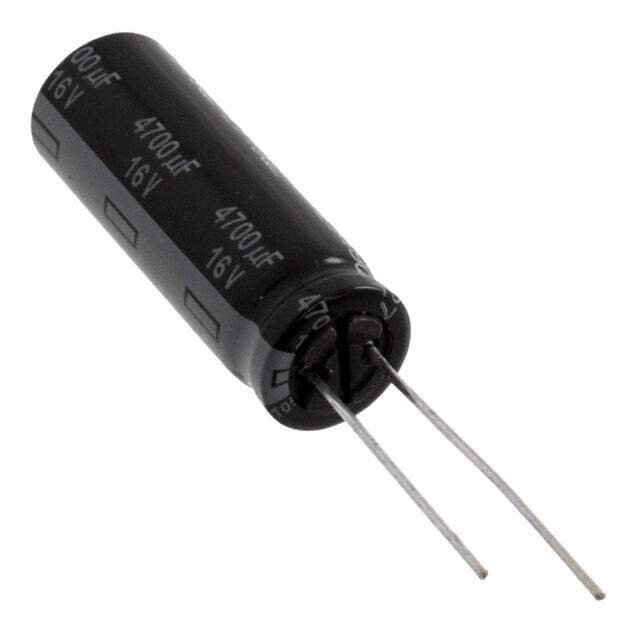

EEU-FR1A682L
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR FR 10V 6800muF ±20% 0.492Dia 12.50mm
PDF
/
Buying Options
Total Price: USD $1.71
Unit Price: USD $1.7072
≥1 USD $1.7072
≥10 USD $1.28128
≥100 USD $0.957616
≥500 USD $0.674362
≥1000 USD $0.606927
≥3000 USD $0.584443
Inventory: 145
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Number of Pins 2
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2010
Series FR
Size / Dimension 0.492Dia 12.50mm
Tolerance ±20%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 6800μF
Voltage - Rated DC 10V
Lead Pitch 5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 12mOhm
Lead Spacing 0.197 5.00mm
Lead Diameter 800 μm
Voltage 10V
Lifetime @ Temp 10000 Hrs @ 105°C
Leakage Current 0.68mA
Ripple Current 3.75A
Polarization Polar
Life (Hours) 10000 hours
Tan Delta 0.31
Impedance 12mOhm
Ripple Current @ Low Frequency 3A @ 120Hz
Ripple Current @ High Frequency 3.75A @ 100kHz
Lead/Base Style Straight
Ripple Current (AC) 3.82A
Dimensions
Diameter 12.5mm
Height 35mm
Height Seated (Max) 1.457 37.00mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant

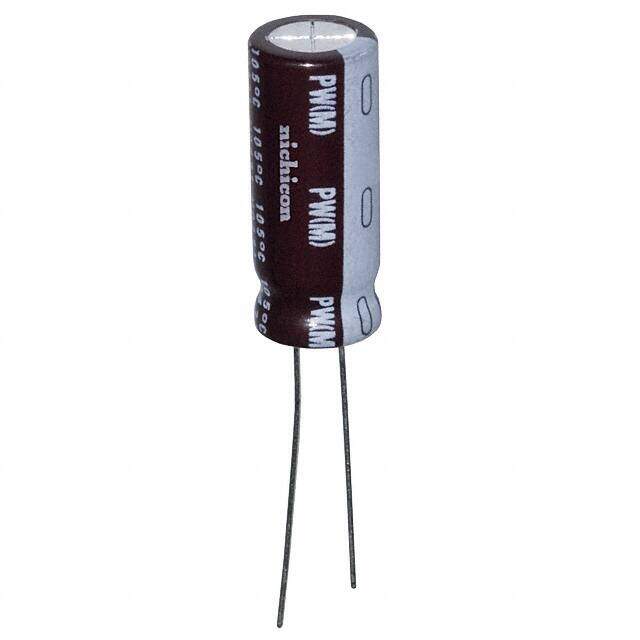

Alternative Model
