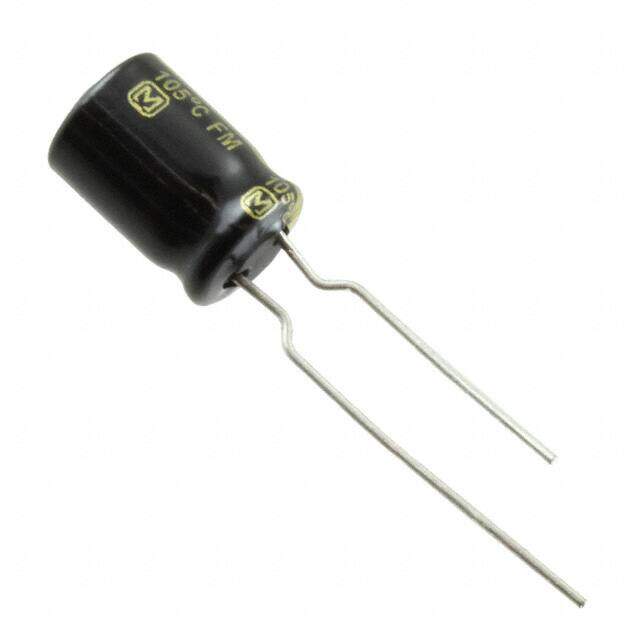

EEU-FM1E221BJ
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can FM 25V 220muF ±20% 0.315Dia 8.00mm
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.3872
≥1 USD $0.3872
≥10 USD $0.25432
≥100 USD $0.187088
≥500 USD $0.152416
≥1000 USD $0.120331
Inventory: 1187
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 11.5mm
Height Seated (Max) 0.512 13.00mm
Height 11.5mm
Diameter 8mm
Technical
Lead/Base Style Straight
Dissipation Factor 0.14 %
Ripple Current @ High Frequency 950mA @ 100kHz
Ripple Current @ Low Frequency 665mA @ 120Hz
Impedance 56mOhms
Life (Hours) 3000 hours
Polarization Polar
Ripple Current 950mA
Lifetime @ Temp 3000 Hrs @ 105°C
Lead Diameter 600 μm
Lead Spacing 0.197 5.00mm
Polarity Polar
ESR (Equivalent Series Resistance) 56mOhm
Lead Pitch 5.0038mm
Voltage - Rated DC 25V
Capacitance 220μF
Voltage - Rated 25V
Applications General Purpose
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Termination Radial
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature General Purpose
Tolerance ±20%
Size / Dimension 0.315Dia 8.00mm
Series FM
Published 2006
Packaging Tape & Box (TB)
Operating Temperature -40°C~105°C
Physical
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
