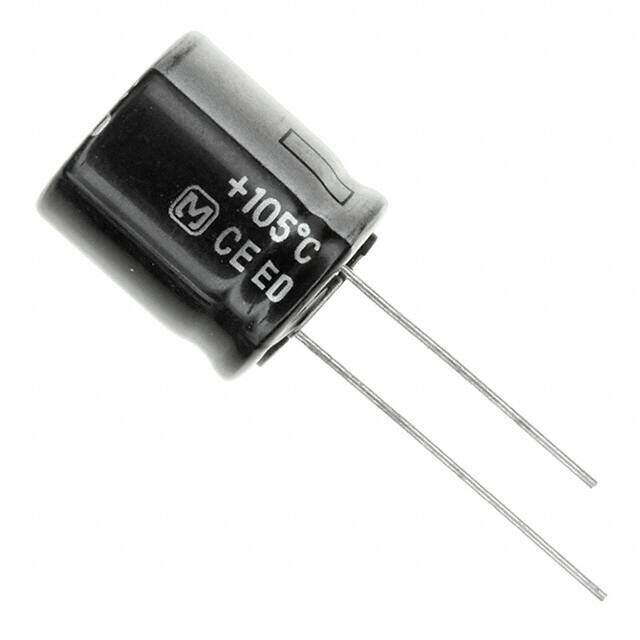

EEU-ED2V101
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR ED 350V 100muF ±20% 0.709Dia 18.00mm
PDF
/
Buying Options
Total Price: USD $3.31
Unit Price: USD $3.311013
≥1 USD $3.311013
≥10 USD $3.123596
≥100 USD $2.946793
≥500 USD $2.779988
≥1000 USD $2.622627
Inventory: 1201
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Number of Pins 2
Dielectric Material Aluminium
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2006
Series ED
Size / Dimension 0.709Dia 18.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 100μF
Voltage - Rated DC 350V
Lead Pitch 7.5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.295 7.50mm
Lead Diameter 800 μm
Voltage 350V
Lifetime @ Temp 10000 Hrs @ 105°C
Ripple Current 1.2A
Polarization Polar
Life (Hours) 10000 hours
Tan Delta 0.2
Ripple Current @ Low Frequency 540mA @ 120Hz
Ripple Current @ High Frequency 1.2A @ 100kHz
Dissipation Factor 0.2 %
Dimensions
Diameter 18mm
Height 31.5mm
Height Seated (Max) 1.240 31.50mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free

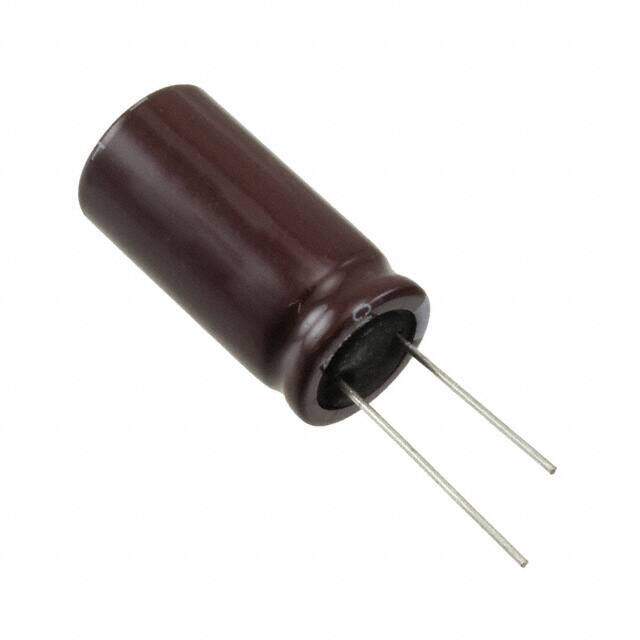

Alternative Model
