EEU-ED2D330B
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description

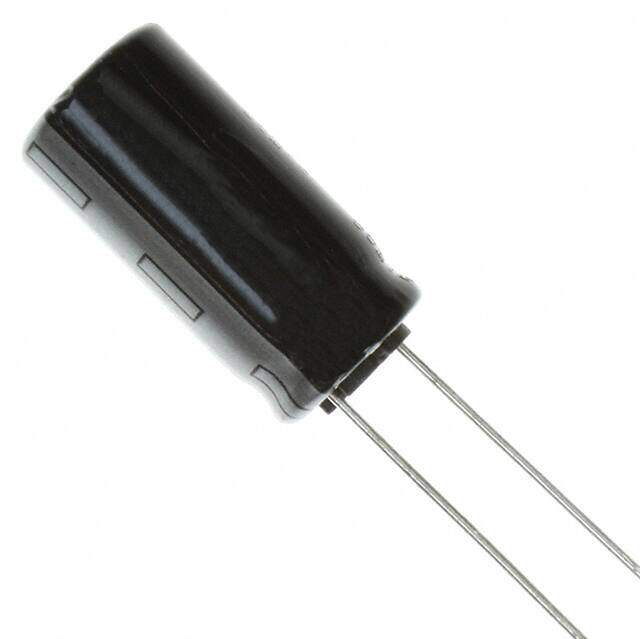

Radial Can ALUMINUM ELECTROLYTIC CAPACITOR ED 200V 33muF ±20% 0.394Dia 10.00mm
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.790274
≥1 USD $0.790274
≥10 USD $0.745537
≥100 USD $0.703342
≥500 USD $0.663528
≥1000 USD $0.625971
Inventory: 1167
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~105°C
Packaging Tape & Box (TB)
Published 2010
Series ED
Size / Dimension 0.394Dia 10.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 33μF
Voltage - Rated DC 200V
Lead Pitch 5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.197 5.00mm
Lead Diameter 600 μm
Lifetime @ Temp 8000 Hrs @ 105°C
Leakage Current 0.406mA
Ripple Current 650mA
Polarization Polar
Life (Hours) 8000 hours
Tan Delta 0.15
Ripple Current @ Low Frequency 260mA @ 120Hz
Ripple Current @ High Frequency 650mA @ 100kHz
Dimensions
Diameter 10mm
Height Seated (Max) 0.866 22.00mm
Length 20mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
