EEU-EB1V221BJ
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description

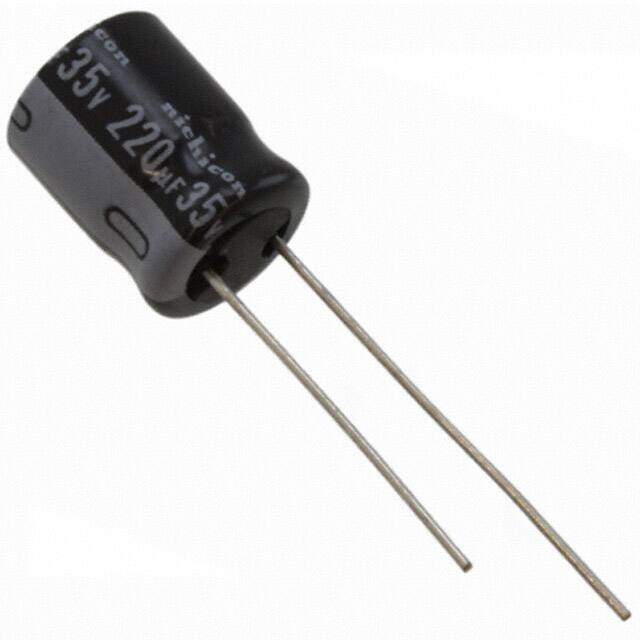

Radial Can EB 35V 220muF ±20% 0.315Dia 8.00mm
PDF
/
Buying Options
Total Price: USD $0.45
Unit Price: USD $0.4488
≥1 USD $0.4488
≥10 USD $0.3036
≥100 USD $0.241296
≥500 USD $0.19932
≥1000 USD $0.155725
Inventory: 945
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Box (TB)
Series EB
Size / Dimension 0.315Dia 8.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Applications General Purpose
Voltage - Rated 35V
Capacitance 220μF
Voltage - Rated DC 35V
Lead Pitch 3.5052mm
Lead Spacing 0.138 3.50mm
Lead Diameter 600 μm
Lifetime @ Temp 10000 Hrs @ 105°C
Ripple Current 197mA
Polarization Polar
Life (Hours) 10000 hours
Ripple Current @ Low Frequency 197mA @ 120Hz
Ripple Current @ High Frequency 256.1mA @ 100kHz
Dimensions
Diameter 8mm
Height 15mm
Height Seated (Max) 0.630 16.00mm
Length 15mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
