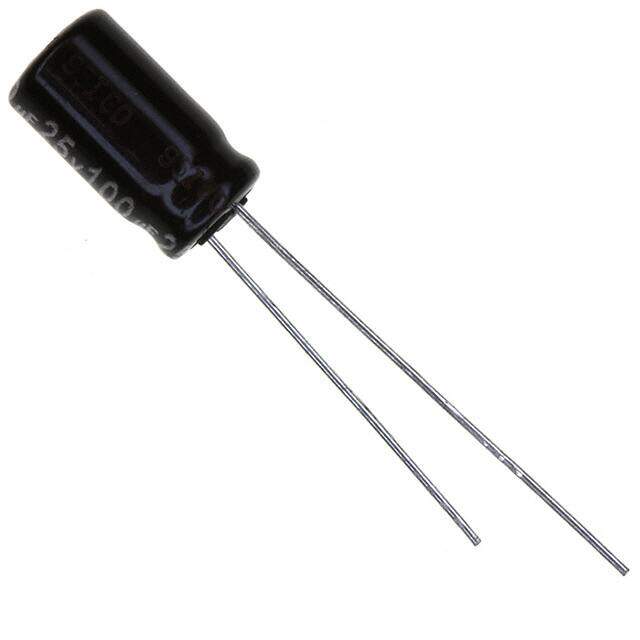

EEU-EB1A221S
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR EB 10V 220muF ±20% 0.248Dia 6.30mm
PDF
/
Buying Options
Total Price: USD $0.31
Unit Price: USD $0.308
≥1 USD $0.308
≥10 USD $0.20504
≥100 USD $0.122848
≥500 USD $0.081893
≥1000 USD $0.073269
≥3000 USD $0.068957
Inventory: 8518
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Tin
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Number of Pins 2
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2010
Series EB
Size / Dimension 0.248Dia 6.30mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Applications General Purpose
Capacitance 220μF
Voltage - Rated DC 10V
Lead Pitch 2.5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.098 2.50mm
Lead Diameter 500 μm
Voltage 10V
Lifetime @ Temp 5000 Hrs @ 105°C
Leakage Current 22μA
Ripple Current 100mA
Polarization Polar
Life (Hours) 5000 hours
Tan Delta 0.3
Ripple Current @ Low Frequency 100mA @ 120Hz
Ripple Current @ High Frequency 130mA @ 100kHz
Ripple Current (AC) 100mA
Dimensions
Diameter 6.3mm
Height 11.2mm
Height Seated (Max) 0.441 11.20mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
