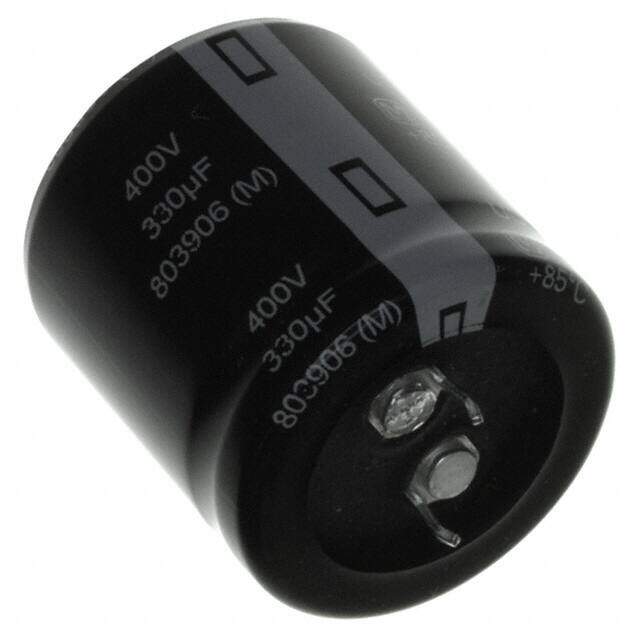

EET-UQ2G331KA
RoHS
/
Package Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR TS-UQ 400V 330muF ±20% 1.181Dia 30.00mm
PDF
/
Inventory: 3313
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Number of Pins 2
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2007
Series TS-UQ
Size / Dimension 1.181Dia 30.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Snap in
ECCN Code EAR99
Resistance 603mOhm
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 330μF
Voltage - Rated DC 400V
Lead Pitch 10mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 603mOhm @ 120Hz
Lead Spacing 0.394 10.00mm
Lead Diameter 800 μm
Lifetime @ Temp 2000 Hrs @ 85°C
Leakage Current 1.08995mA
Ripple Current 1.9A
Test Frequency 120Hz
Polarization Polar
Life (Hours) 2000 hours
Tan Delta 0.15
Ripple Current @ Low Frequency 1.9A @ 120Hz
Ripple Current @ High Frequency 2.66A @ 10kHz
Dissipation Factor 15 %
Dimensions
Diameter 30mm
Height 30mm
Height Seated (Max) 1.181 30.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
