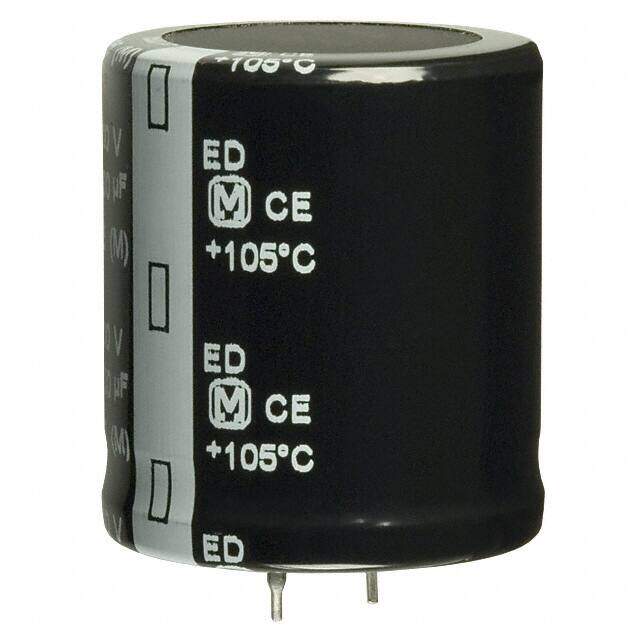

EET-ED2E102EA
RoHS
/
Package Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR TS-ED 250V 1000muF ±20% 1.378Dia 35.00mm
PDF
/
Inventory: 5535
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Surface Mount NO
Number of Pins 2
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2001
Series TS-ED
Size / Dimension 1.378Dia 35.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 1000μF
Voltage - Rated DC 250V
Reach Compliance Code unknown
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 149mOhm @ 120Hz
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 3000 Hrs @ 105°C
Leakage Current 1.5mA
Polarization Polar
Tan Delta 0.15
Ripple Current @ Low Frequency 2.84A @ 120Hz
Ripple Current @ High Frequency 4.06A @ 100kHz
Dimensions
Diameter 35mm
Height 40mm
Height Seated (Max) 1.575 40.00mm
Compliance
RoHS Status RoHS Compliant

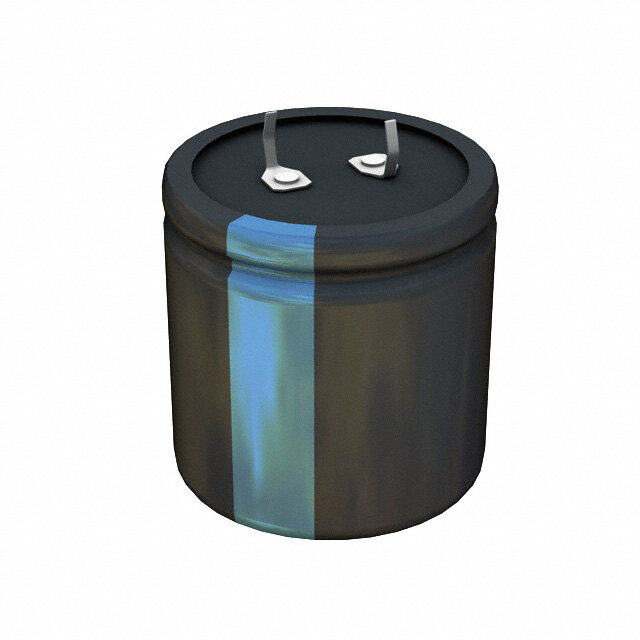

Alternative Model
