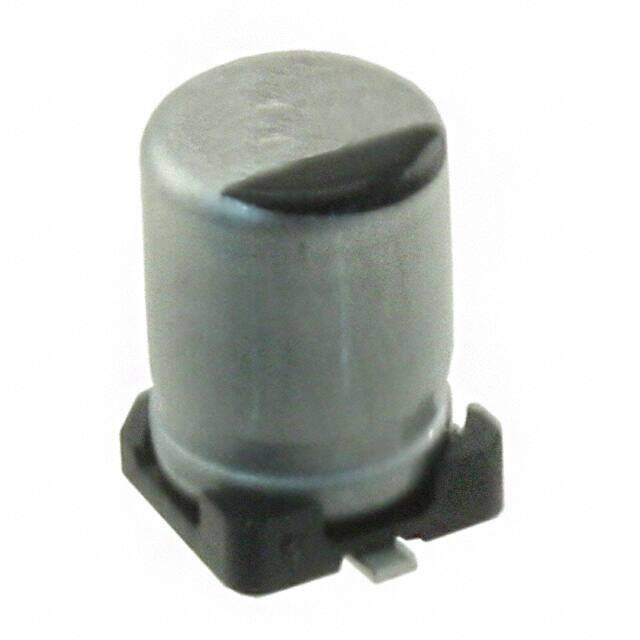

EEE-FT1E330AR
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - SMD ALUMINUM ELECTROLYTIC CAPACITOR FT 25V 33muF ±20% 0.157Dia 4.00mm
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4048
≥1 USD $0.4048
≥10 USD $0.26928
≥100 USD $0.214368
≥500 USD $0.177056
≥1000 USD $0.138318
≥3000 USD $0.117568
Inventory: 1274
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Terminal Shape FLAT
Dielectric Material ALUMINUM
Surface Mount Land Size 0.169Lx0.169W 4.30mmx4.30mm
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2015
Series FT
Size / Dimension 0.157Dia 4.00mm
Tolerance ±20%
JESD-609 Code e3/e6
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish TIN/TIN BISMUTH
Applications Automotive
Voltage - Rated 25V
Capacitance 33μF
Packing Method TR, 15 Inch
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 850mOhm @ 100kHz
Rated (DC) Voltage (URdc) 25V
Size Code 1717
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 0.00825mA
Polarization Polar
Tan Delta 0.14
Ripple Current @ Low Frequency 104mA @ 120Hz
Ripple Current @ High Frequency 160mA @ 100kHz
Dimensions
Diameter 4mm
Height Seated (Max) 0.240 6.10mm
Length 5.8mm
Compliance
RoHS Status RoHS Compliant
Ratings AEC-Q200
