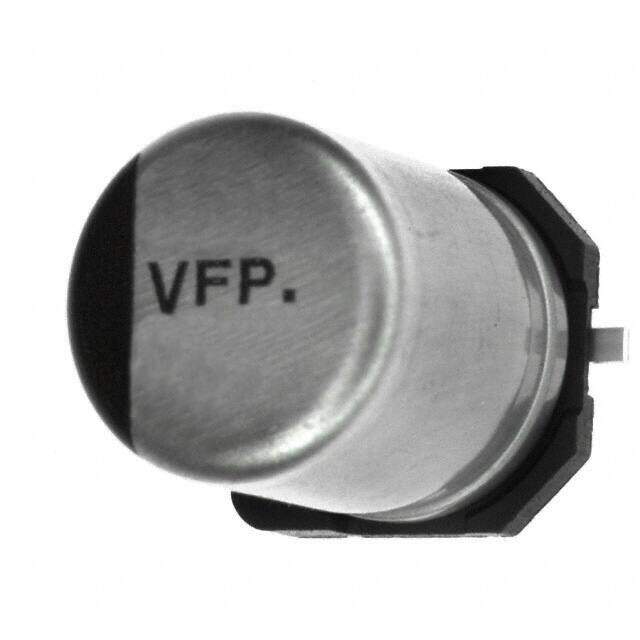

EEE-FP1C470AP image
Favorite
EEE-FP1C470AP image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Can - SMD
Category Capacitors / Aluminum Electrolytic Capacitors
Description Radial Can - SMD ALUMINUM ELECTROLYTIC CAPACITOR FP 16V 47muF ±20% 0.248Dia 6.30mm
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.528
≥1 USD $0.528
≥10 USD $0.35288
≥100 USD $0.28072
≥500 USD $0.231792
≥1000 USD $0.181104
Inventory: 4162
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 6.6mm
Length 7.8mm
Height Seated (Max) 0.228 5.80mm
Height 5.8mm
Diameter 6.3mm

Technical

Ripple Current (AC) 300mA
Ripple Current @ High Frequency 300mA @ 100kHz
Ripple Current @ Low Frequency 195mA @ 120Hz
Tan Delta 0.16
Life (Hours) 2000 hours
Polarization Polar
Ripple Current 300mA
Leakage Current 7.5μA
Lifetime @ Temp 2000 Hrs @ 105°C
Voltage 16V
ESR (Equivalent Series Resistance) 260mOhm @ 100kHz
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 1.8mm
Voltage - Rated DC 16V
Capacitance 47μF
Applications Automotive
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.248Dia 6.30mm
Series FP
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C

Physical

Surface Mount Land Size 0.260Lx0.260W 6.60mmx6.60mm
Dielectric Material Aluminium
Number of Pins 2
Terminal Shape FLAT
Package / Case Radial, Can - SMD
Mounting Type Surface Mount
Mount PCB, Surface Mount

Supply Chain

Factory Lead Time 17 Weeks
