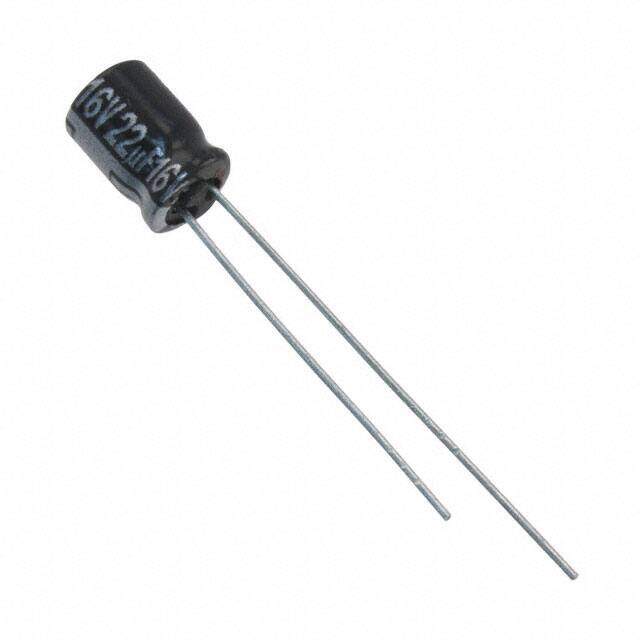

EEA-GA1C220H
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR GA 16V 22muF ±20% 0.197Dia 5.00mm
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.2552
≥1 USD $0.2552
≥10 USD $0.16808
≥100 USD $0.11792
≥500 USD $0.095128
≥1000 USD $0.070699
≥3000 USD $0.061864
Inventory: 1155
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Box (TB)
Series GA
Size / Dimension 0.197Dia 5.00mm
Tolerance ±20%
JESD-609 Code e3
Feature General Purpose
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Applications General Purpose
Capacitance 22μF
Voltage - Rated DC 16V
Lead Pitch 2.5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.098 2.50mm
Lifetime @ Temp 1000 Hrs @ 105°C
Leakage Current 3.5μA
Ripple Current 50mA
Polarization Polar
Life (Hours) 1000 hours
Tan Delta 0.18
Ripple Current @ Low Frequency 50mA @ 120Hz
Ripple Current @ High Frequency 77.5mA @ 100kHz
Dimensions
Diameter 5mm
Height 7mm
Height Seated (Max) 0.276 7.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
