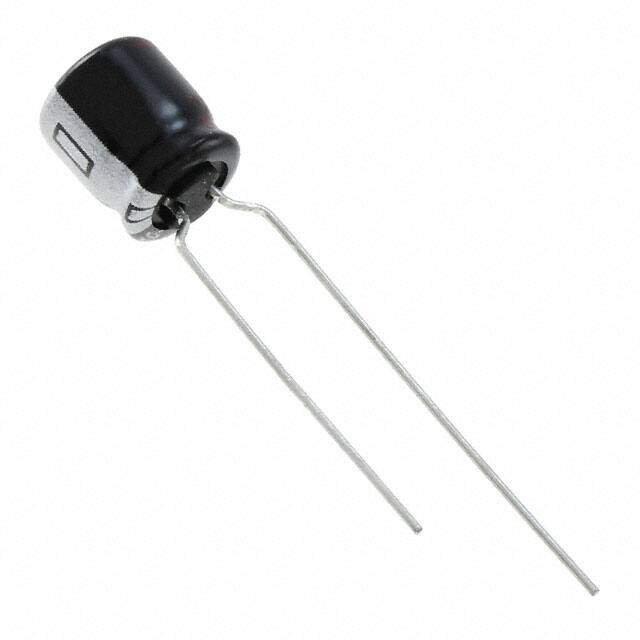

EEA-GA1A101B
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR GA 10V 100muF ±20% 0.248Dia 6.30mm
PDF
/
Buying Options
Total Price: USD $0.32
Unit Price: USD $0.3168
≥1 USD $0.3168
≥10 USD $0.20504
≥100 USD $0.143968
≥500 USD $0.116248
≥1000 USD $0.086363
≥3000 USD $0.075566
Inventory: 1182
Minimum: 1
-
+
Technical Details
Technical
Packaging Tape & Box (TB)
Published 2016
Series GA
Size / Dimension 0.248Dia 6.30mm
Tolerance ±20%
JESD-609 Code e3
Feature General Purpose
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Applications General Purpose
Capacitance 100μF
Voltage - Rated DC 10V
Lead Pitch 5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.197 5.00mm
Lifetime @ Temp 1000 Hrs @ 105°C
Leakage Current 10μA
Ripple Current 110mA
Polarization Polar
Life (Hours) 1000 hours
Tan Delta 0.22
Ripple Current @ Low Frequency 110mA @ 120Hz
Ripple Current @ High Frequency 170.5mA @ 100kHz
Operating Temperature -55°C~105°C
Dimensions
Diameter 6.3mm
Height 7mm
Height Seated (Max) 0.276 7.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Physical
Dielectric Material ALUMINUM (WET)
Terminal Shape WIRE
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 14 Weeks
